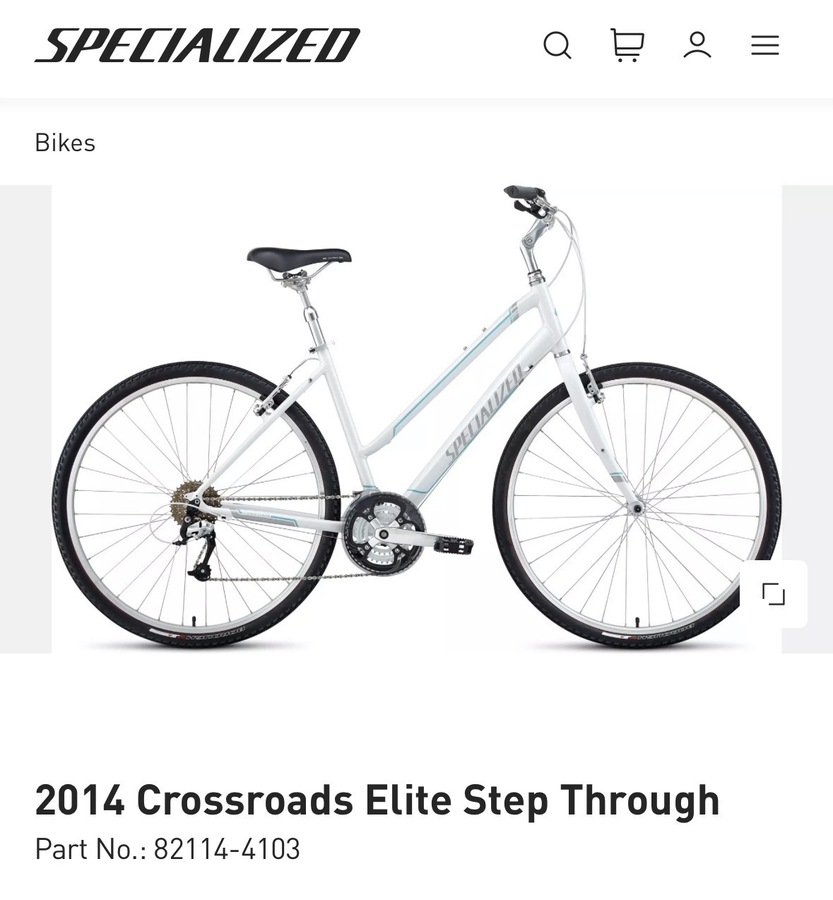

2014 Specialized Crossroads Elite Step Through
- Serial
- unknown
- Manufacturer
- Specialized
- Model
- Crossroads Elite Step Through
- Year
- 2014
- Primary colors
- White
- Wheel diameter
- 700 C
- Tire width
- Wide tire
- Distinguishing features
-
A1 Premium Aluminum, custom formed tubes, forged dropouts w/ replaceable derailleur hanger
Frame and Fork
- Fork
- Specialized A1 Premium Aluminum, w/ custom butting and profile
- Headset
- 1-1/8" FSA Intelaset, threaded, Cr-Mo cups
Wheels
- Front Rim
- Alloy double-wall, CNC sidewalls, 32h
- Rear Rim
- Alloy double-wall, CNC sidewalls, 32h
- Front Hub
- Double-sealed, ground race, dual-lock nuts w/ 17mm contact side, 5mm QR
- Rear Hub
- Double-sealed, dual-lock nuts, steel axle, 5mm QR
- Spokes
- Stainless, 14g (2.0mm)
- Front Tire
- Specialized Borough Armadillo, 60TPI, wire bead, 700x45c
- Rear Tire
- Specialized Borough Armadillo, 60TPI, wire bead, 700x45c
- Front Tube
- Standard Schrader valve
- Rear Tube
- Standard Schrader valve
Drivetrain
- Front Derailleur
- Shimano Acera, top-swing, dual-pull
- Rear Derailleur
- Shimano Acera, 9-speed
- Front Shifter
- Shimano Acera, 9-Speed, Rapidfire
- Rear Shifter
- Shimano Acera, 9-Speed, Rapidfire
- Cog/Cassette/Freewheel
- Shimano, 9-speed, 11-32
- Chain
- KMC X9
- Crankset
- SR Suntour XCR, 9-speed, square spindle, w/ chainguard
- Chainrings
- 48/36/26, w/ chainguard
- Bottom Bracket
- Cartridge bearings, square spindle, capless bolts
- Pedals
- Comfort, composite body w/ rubber top, sealed loose ball bearings
Brakes
- Front Brake
- Die-cast, alloy V-brake, 60mm 1pc. pad, linear pull
- Rear Brake
- Die-cast, alloy V-brake, 60mm 1pc. pad, linear pull
- Front Brake Lever
- Alloy, four-finger, Kraton comfort lever
- Rear Brake Lever
- Alloy, four-finger, Kraton comfort lever
Additional Parts
- Stem
- Adjustable quill, die-cast alloy, 2-bolt, 150mm x 25.4mm clamp
- Handlebar
- Specialized riser bar, alloy, 8-degree backsweep, 60mm rise, 25.4mm
- Grips/Tape
- Specialized Body Geometry Comfort, dual compound, lock-on
- Saddle
- Specialized Body Geometry Comfort Gel Women's, 200mm
- Seatpost
- Alloy suspension, 2-bolt, 27.2mm
- Seatpost Clamp
- Alloy, QR
