2013 Jamis Ventura Comp

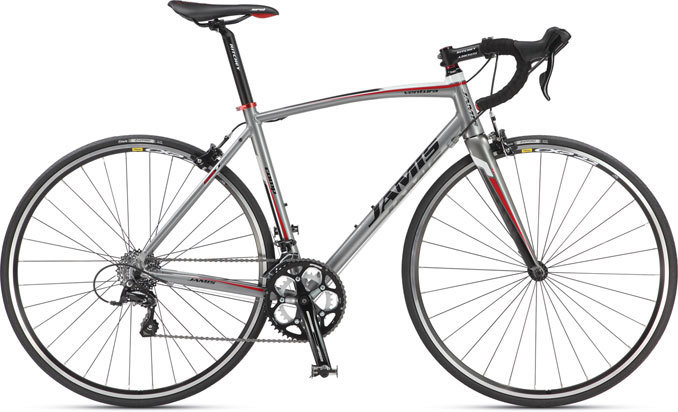

Stock photo of a 2013 Ventura Comp Color may not match!
- Serial
-
U12XK47175 - Manufacturer
- Jamis
- Name
- Comp
- Model
- Ventura Comp
- Year
- 2013
- Primary colors
- Silver, gray or bare metal
- Frame size
- 56CM
- Wheel diameter
- 700 C
- Tire width
- Narrow tire
- Distinguishing features
-
Kinesis 7005 double-butted main frame sloping radius top tube design, SST tubing diameters, 1 1/8-1.5" tapered head tube, 34.9 seat tube, replaceable derailleur hanger
Frame and fork
- Fork
- Full carbon composite straight blade road fork, tapered steerer with 1.5 crown, forged alloy dropouts.
- Headset
- FSA Integrated, threadless, 1 1/8"
Wheels
- Front Wheel
- Mavic CXP-22 rims with CNC sidewalls, 28/32H, Formula alloy hubs with QR and 14g stainless steel spokes
- Rear Wheel
- Mavic CXP-22 rims with CNC sidewalls, 28/32H, Formula alloy hubs with QR and 14g stainless steel spokes
- Front Tire
- Vittoria Zaffiro, 700 x 23c
- Rear Tire
- Vittoria Zaffiro, 700 x 23c
Drivetrain and brakes
- Front Derailleur
- Shimano Sora RD-3500 rear and Sora FD-3500 front with 34.9mm alloy clamp
- Rear Derailleur
- Shimano Sora RD-3500 rear and Sora FD-3500 front with 34.9mm alloy clamp
- Front Shifter
- Shimano Sora ST-3500 Dual Control STI, 18-Speed
- Rear Shifter
- Shimano Sora ST-3500 Dual Control STI, 18-Speed
- Chain
- KMC Z99
- Cog/Cassette/Freewheel
- SRAM PG-950 9-Speed 11-28T
- Crankset
- FSA Vero compact double, 50/34T, 170mm (48/51), 172.5mm (54/56), 175mm (58/61)
- Pedals
- Touring platform style, full alloy with toe clips
- Bottom Bracket
- FSA sealed cartridge, 68 x 110.5mm
- Front Brake
- Tektro R312 alloy dual pivot calipers with adjustable pads and Shimano Sora ST-3500 STI brake levers
- Rear Brake
- Tektro R312 alloy dual pivot calipers with adjustable pads and Shimano Sora ST-3500 STI brake levers
Additional parts
- Handlebar
- Ritchey Logic, 6061 aluminum, 31.8 x 400mm (48/51) 420mm (54/56), 440mm (58/61)
- Stem
- Ritchey Road, 3D forged 6061 alloy, 6JAMIS_DEGREE x 90mm (48/51), 100mm (54/56), 120mm (58/61)
- Seatpost
- Ritchey Road, 31.6 x 350mm with alloy clamp
- Saddle
- Selle San Marco SPID Arrowhead with Syntex cover and carbon steel rails
