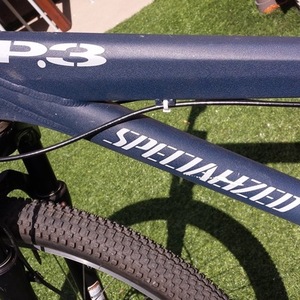

2004 Specialized P.3
- Serial
- M3FL09442
- Manufacturer
- Specialized
- Model
- P.3
- Year
- 2004
- Primary colors
- Blue
- Frame Material
- Aluminum
- Wheel diameter
- 26in
- Tire width
- Wide tire
- Drivetrain front
- 1
- Drivetrain rear
- 9
- Distinguishing features
-
A1 Premium Aluminum, Freeride HT/Dirt Jumping/Street MTB design, Centerfold TT, butted and manipulated DT, forged and relieved HT, forged BB shell w/ integrated ISCG tabs, forged horizontal dropouts, integrated derailleur hanger, disc only, asymmetrical 6mm offset rear triangle.
Frame and fork
- Headset
- Cr-Mo, 1 1/8� threadless, all alloy and steel construction, loose ball bearing with seals
- Fork
- Marzocchi Dirt Jumper II, 100mm travel, internal rebound adjust, Cr-Mo stantions, air spring rate adjust, QR bolt dropouts Bomber
Wheels
- Rear Tube
- Specialized 26 x 2.4/2.75�, schraeder valve
- Front Tube
- Specialized 26 x 2.4/2.75�, schraeder valve
- Rear Tire
- Kenda Tomac Small Block 8 26" Folding Tire
- Front Tire
- Kenda Tomac Small Block 8 26" Folding Tire
- Spokes
- 2.0mm (14g) stainless, black, brass nipples, L258/R260mm front, L258/R257mm rear
- Rear Hub
- Shimano M-525 disc, 36 hole, sealed loose ball bearings, alloy Q/R
- Front Hub
- Specialized Stout disc, 36 hole, cartridge bearings, 20mm alloy thru-axle
- Rear Rim
- Sun Double Track, 26�, black, eyelets
- Front Rim
- Sun Double Track, 26�, black, eyelets
Drivetrain and brakes
- Pedals
- Alloy platform, 3mm pressed pins, 9/16� Cr-Mo axle
- Bottom Bracket
- Truvativ ISIS GigaPipe DH, 73mm shell width, 118mm spindle length, E-Type
- Chainrings
- Rockguard outer ring, 32Sx22S, 4 bolt 104/64mm compact
- Crankset
- Truvativ Holzfeller 7050 ISIS spline, 7050 alloy, 170mm
- Chain
- Shimano HG-73
- Cog/Cassette/Freewheel
- Shimano HG-50 LX, 9-speed, 11x34t
- Rear Shifter
- Shimano M-510 Deore
- Front Shifter
- Shimano M-510 Deore
- Rear Derailleur
- Shimano M-750 XT, short cage
- Front Derailleur
- Shimano M-570 LX, top pull
- Rear Brake Lever
- Hayes HFX-9 full hydraulic disc
- Front Brake Lever
- Hayes HFX-9 full hydraulic disc
- Rear Brake
- Hayes HFX-9 full hydraulic disc, 6� rotor
- Front Brake
- Hayes HFX-9 full hydraulic disc, 8� rotor
Additional parts
- Seatpost Clamp
- Alloy collar with Q/R, 36.0mm clamp I.D., black
- Seatpost
- Alloy, black, 30.9 x 300mm for 8mm rails
- Saddle
- Specialized P.3, 8mm steel rails, X-Brace
- Grips/Tape
- Specialized MTB grip, black, double density Kraton
- Handlebar
- Specialized BigHit rise bar, 6061 butted alloy, 31.8mm clamp, 6 degree upsweep, 9 degree backsweep, 670mm
- Stem
- Truvativ Holzfeller forged/CNC stem, 5 degree x 40mm
- Other
- Chain stay/seat stay protector, derailleur protector, reflectors, owners manual
