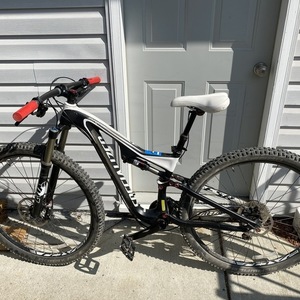

2013 Specialized Stumpjumper FSR Comp Carbon 29
- Serial
-
WSBC6604137799H - Manufacturer
- Specialized
- Model
- Stumpjumper FSR Comp Carbon 29
- Year
- 2013
- Primary colors
- Black and White
- Frame size
- S

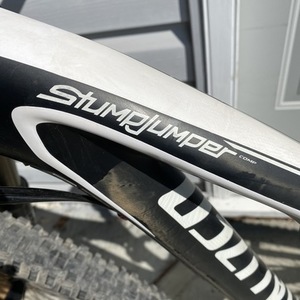

- Frame Material
- Carbon or composite
- Handlebar type
- Flat or riser
- Wheel diameter
- 700 C
- Tire width
- Wide tire
- Distinguishing features
-
FACT IS 9m carbon front triangle, 29" geometry, M5 alloy rear triangle, tapered HT, carbon PF30 BB, ISCG ’05, internal Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm travel
Frame and fork
- Headset
- 1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

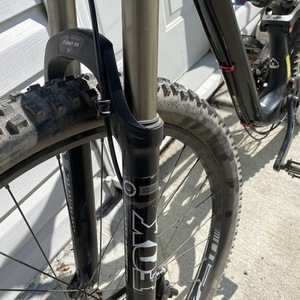

- Fork
- FOX Float CTD Evolution 29, air spring, tapered steerer, Climb, Trail, Descend settings and reb adj., 15mm thru-axle, 130mm travel
- Rear Suspension

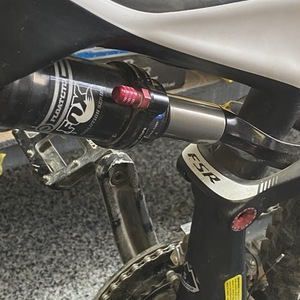

- Custom FOX Float CTD Evolution with AUTOSAG, Climb, Trail, Descend settings and rebound adj., 194x48mm
Wheels
- Rear Tube
- Ultralight presta
- Front Tube
- Ultralight presta

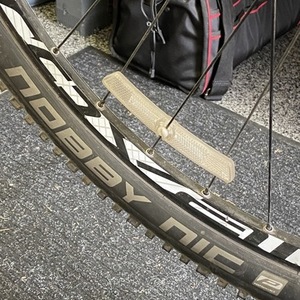

- Rear Tire
- nobby nic
- Front Tire
- nobby nic
- Spokes
- DT Industry, 2.0 stainless
- Rear Hub
- New Specialized Hi Lo disc, 4x-sealed cartridge bearing, 142mm spacing, 12mm thru-axle, 32h
- Front Hub
- Specialized Hi Lo disc, sealed cartridge bearing, 15mm thru-axle, 32h

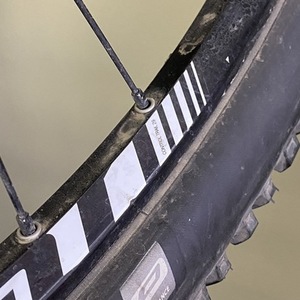

- Rear Rim
- Roval 29, alloy disc, 26mm wide, 32h
- Front Rim
- Roval 29, alloy disc, 26mm wide, 32h
Drivetrain and brakes

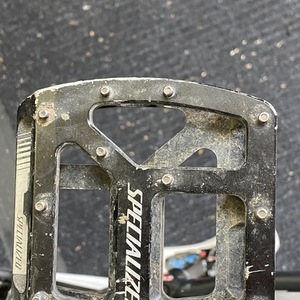

- Pedals
- Resin Test Ride Pedals with toe clips, CEN std.
- Bottom Bracket
- SRAM PF30, OS press-in bearing, sealed cartridge
- Chainrings
- 36/22, w/ alloy guard
- Crankset
- Custom SRAM S-1250, 10-speed XC Trail double w/ alloy guard, PF30 spindle, S: 170mm, Others: 175mm
- Chain
- KMC X10, nickel plate, reusable Missing Link
- Cog/Cassette/Freewheel
- SRAM PG-1030, 10-speed, 11-36

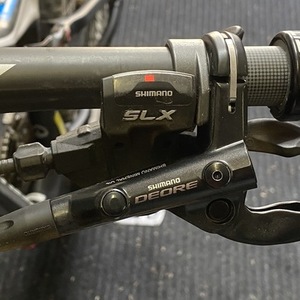

- Rear Shifter
- Shimano SLX 10-speed, trigger
- Front Shifter
- Shimano SLX 10-speed, trigger
- Rear Derailleur
- Shimano XT Shadow Plus, 10-speed, SGS long cage
- Front Derailleur
- SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull
- Rear Brake Lever
- shimano deore
- Front Brake Lever
- shimano deore

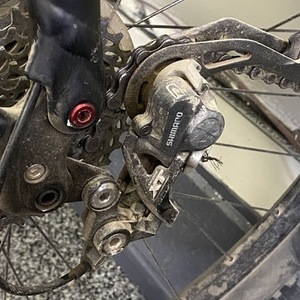

- Rear Brake
- shimano deore
- Front Brake
- shimano deore
Additional parts
- Seatpost Clamp
- 34.9mm clamp, 7050 hard anodized alloy collar w/ QR, black
- Seatpost
- Specialized 2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, Others: 400mm

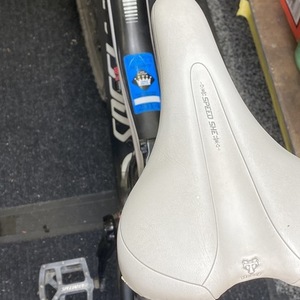

- Saddle
- Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

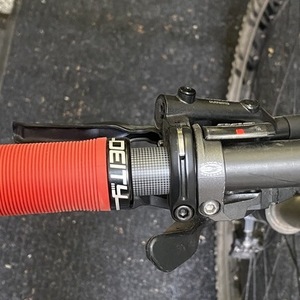

- Grips/Tape
- Diety

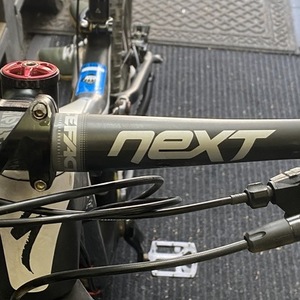

- Handlebar
- raceface next carbon
- Stem
- Specialized XC Trail, 6061 alloy, 4-bolt, 6-degree rise, 31.8mm
- Other
- Protective clear coat, Specialized Dangler chain management radness, derailleur hanger, reflectors, owners manual, Mylar DT protector
