2010 Specialized Stumpjumper FSR Elite

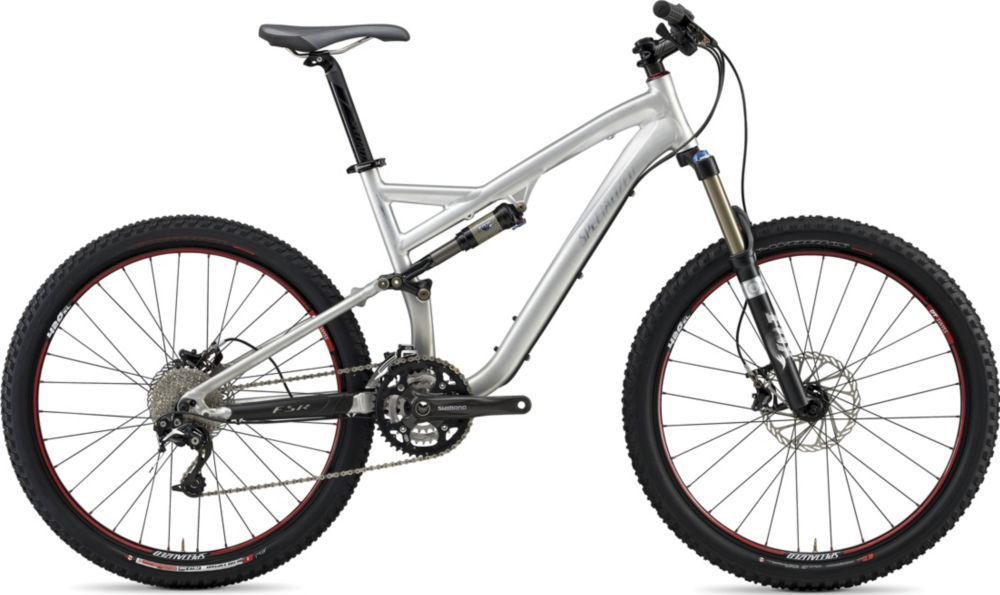

Stock photo of a 2010 Stumpjumper FSR Elite Color may not match!
- Serial
-
MOBK1339 - Manufacturer
- Specialized
- Model
- Stumpjumper FSR Elite
- Year
- 2010
- Primary colors
- Silver, gray or bare metal
- Frame Material
- Aluminum
- Wheel diameter
- 26in
- Tire width
- Wide tire
- Distinguishing features
-
Stumpjumper FSR M5 manipulated alloy frame, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm travel
Frame and fork
- Rear Suspension
- Fox Triad, custom on-the-fly 3-position switch 1) lock out 2) Open 3) ProPedal pedal assisting damping, rebound adj., 7.875x1.9", integrated cartridge bearing yoke mount
- Fork
- Fox Talas RL, 140/120/100mm travel, alloy steerer, compression and rebound adj. w/ LO
- Headset
- Campy style cartridge bearings for integrated alloy HT
Wheels
- Front Rim
- Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
- Rear Rim
- Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
- Front Hub
- Hi Lo disc, CNC flange, sealed cartridge bearing, 9mm DT RWS, alloy QR, 28h
- Rear Hub
- Custom Shimano M525 SL, alloy QR, 32h
- Spokes
- DT Swiss 1.8mm stainless
- Front Tire
- S-Works Purgatory, 26x2.2", 120 TPI, tubeless ready aramid bead, dual compound
- Rear Tire
- The Captain Control, 26x2.0", 60 TPI, tubeless ready aramid bead, dual compound
- Front Tube
- Ultralight presta valve
- Rear Tube
- Ultralight presta valve
Drivetrain and brakes
- Front Brake
- Custom Avid Elixir R SL, alloy backed semi-met pads, S/M: 185mm, L/XL: 203mm rotor
- Rear Brake
- Custom Avid Elixir R SL, alloy backed semi-met pads, S/M: 160mm, L/XL: 185mm rotor
- Front Brake Lever
- Custom Avid Elixir R SL Hydraulic, tool-less adj. reach
- Rear Brake Lever
- Custom Avid Elixir R SL Hydraulic, tool-less adj. reach
- Front Derailleur
- Shimano M660 SLX, DMD, top swing, dual pull
- Rear Derailleur
- Shimano RD-M972 Shadow XTR, long-carbon cage
- Front Shifter
- Shimano SL-M660 SLX, trigger, 9-speed
- Rear Shifter
- Shimano SL-M660 SLX, trigger, 9-speed
- Cog/Cassette/Freewheel
- Shimano HG61, 9-speed, 11-34t
- Chain
- SRAM PC-971, 9-speed w/Power Link
- Crankset
- Custom Shimano FC-M542, S: 170mm, others: 175mm
- Bottom Bracket
- Custom Shimano integrated
Additional parts
- Stem
- 3D forged alloy, adjustable rise, 31.8mm clamp
- Handlebar
- Specialized XC low rise bar, butted 7050 alloy, 31.8mm, 660mm wide, 8 degree back sweep, 6 degree up
- Grips/Tape
- Specialized waffle lock on grip (S/M) Specialized Thick lock on grip (L/XL)
- Saddle
- Specialized Format, hollow Cr-Mo rails, SL foam, S/M: 130mm L/XXL:143mm
- Seatpost
- 2014 butted alloy, single bolt setback, 30.9mm
- Seatpost Clamp
- 7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black
- Other
- Protective clear coat, derailleur hanger, reflectors, owners manual
