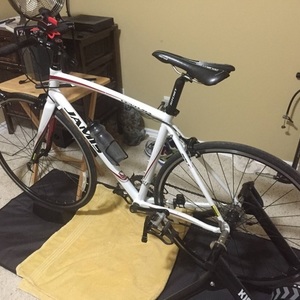

2012 Jamis Ventura Comp
- Serial
-
U11YK03378 - Manufacturer
- Jamis
- Model
- Ventura Comp
- Year
- 2012
- Primary colors
- White, Red, and Black
- Frame size
- M
- Frame Material
- Aluminum
- Handlebar type
- Drop bars
- Wheel diameter
- 700 C
- Tire width
- Narrow tire
- Drivetrain front
- 2
- Drivetrain rear
- 9
- Distinguishing features
-
Kinesis 7005 double-butted main frame sloping radius top tube design, SST tubing diameters, 34.9 seat tube, replaceable derailleur hanger
Frame and fork
- Headset
- FSA Integrated, threadless, 1 1/8"
- Fork
- Full carbon composite straight blade road fork, forged alloy dropouts
Wheels
- Rear Tire
- GatorSkin, 700 x 23c
- Front Tire
- GatorSkin, 700 x 23c
- Rear Wheel
- Mavic CXP-22 rims with CNC sidewalls, 28/32H, Formula alloy hubs with QR and 14g stainless steel spokes
- Front Wheel
- Mavic CXP-22 rims with CNC sidewalls, 28/32H, Formula alloy hubs with QR and 14g stainless steel spokes
Drivetrain and brakes
- Pedals
- Touring platform style, full alloy with toe clips
- Crankset
- FSA Vero compact double, 50/34T, 170mm (48/51), 172.5mm (54/56), 175mm (58/61)
- Cog/Cassette/Freewheel
- SRAM PG-950 9-Speed 11-26T
- Chain
- KMC Z99
- Rear Shifter
- Shimano Sora ST-3400 Dual Control STI, 18-Speed
- Front Shifter
- Shimano Sora ST-3400 Dual Control STI, 18-Speed
- Rear Derailleur
- Shimano Tiagra RD-4600 rear and Sora FD-3400 front with 34.9mm alloy clamp
- Front Derailleur
- Shimano Tiagra RD-4600 rear and Sora FD-3400 front with 34.9mm alloy clamp
Additional parts
- Saddle
- Selle San Marco SPID Arrowhead with Syntex cover and carbon steel rails
- Seatpost
- Ritchey Road, 31.6 x 300mm with alloy clamp
- Stem
- Ritchey Road, 3D forged 6061 alloy, 6JAMIS_DEGREE x 90mm (48/51), 100mm (54/56), 120mm (58/61)
- Handlebar
- Ritchey Logic, 6061 aluminum, 31.8 x 400mm (48/51) 420mm (54/56), 440mm (58/61)
