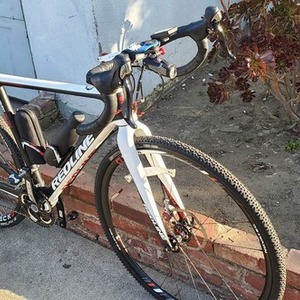

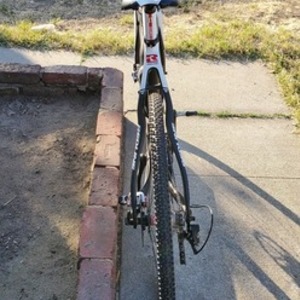

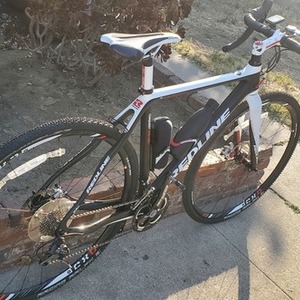

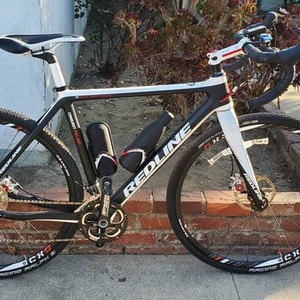

2014 Redline Conquest Pro Disc
- Serial
-
U137J13900 - Manufacturer
- Redline
- Name
- Conquest Pro
- Model
- Conquest Pro Disc
- Year
- 2014
- Primary colors
- Black and White
- Frame size
- 54CM
- Frame Material
- Carbon or composite
- Handlebar type
- Drop bars
- Wheel diameter
- 700 C
- Tire width
- Wide tire
- Distinguishing features
-
New Conquest Pro Carbon with MSD (Milti Space Design), PF30 BB,Tapered headtube and internal cable routing. Upgraded seatpost and stem to 3T, White.
Frame and fork
- Headset
- FSA Orbit CX 11/8" upper / 1 1/2" lower with 16MM cable hanger
- Fork
- Full Carbon with 11/8" - 1 1/2" tapered steerer utilizing RCT construction
Wheels
- Rear Tire
- Schwalbe Racing Ralph 700 X 35 blackwall
- Front Tire
- Schwalbe Racing Ralph 700 X 35 blackwall
- Rear Wheel
- Novatech CXD 26 Disc specific cyclocross rim, tubeless compatible, 135mm
- Front Wheel
- Novatech CXD 26 Disc specific cyclocross rim, tubeless compatible, 135mm
Drivetrain and brakes
- Rear Brake
- Avid BB7 mechanical disc. (140 f, 160r rotors)
- Front Brake
- Avid BB7 mechanical disc. (140 f, 160r rotors)
- Chain
- KMC X10
- Cog/Cassette/Freewheel
- Shimano 105
- Front Derailleur
- Shimano 105
- Rear Derailleur
- Shimano 105
- Rear Shift And Brake Lever
- Shimano 105
- Front Shift And Brake Lever
- Shimano 105
- Bottom Bracket
- FSA press fit 30
- Crankset
- FSA Gossamer PF30 46/36T, 110 BCD
Additional parts
- Seatpost Clamp
- Forged alloy 34.9
- Seatpost
- 3T Dorico Team Carbon, White/Red Line Dorico Team
- Saddle
- Selle San Marco Era Dynamic Protek
- Grips/Tape
- Redline poly gel

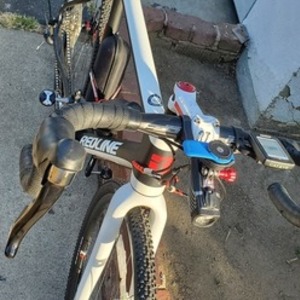

- Handlebar
- FSA Gossamer compact 31.8MM, 125MM drop
- Stem
- 3T ARX-Team White/Red Line ARX-Team
