2019 Marin Bikes Pine Mountain 1
- Serial
-
051833027 - Manufacturer
- Marin Bikes
- Name
- Pine Mountain 1
- Model
- Pine Mountain 1
- Year
- 2019
- Primary colors
- Blue
- Frame size
- S
- Frame Material
- Steel
- Handlebar type
- flat
- Wheel diameter
- 650 B
- Tire width
- Wide tire
- Drivetrain front
- 1
- Drivetrain rear
- 11
- Distinguishing features
-
This bike has had an electric assist added by Bike Swift and is setup for bike packing
Frame and fork
- Fork
- Niner Bikes RDO Boost 29" Disc Fork, Tapered, Stealth RDO Boost 29" disc
Wheels
- Rim
- Velocity Blunt 35 MTB Rim (Rim Size: 27.5" - 650B, Hole Count: 36, Brake Track: Disc Only, Rim Color: Black) Blunt 35
- Hub
- GMAC 10T Rear Hub Motor by Grin Technologies
- Spokes
- SAPIM RACE DOUBLE BUTTED SPOKE
- Tire
- Schwalbe G-one 70-584 (27.5 x 2.80) G-ONE 70-584
Drivetrain and brakes
- Bottom Bracket
- SEMPU Torque Sensing Bottom Bracket 122.5mm JIS 122.5 JIS
- Chainrings
- VXM 104BCD Chainring, 2019 CNC 7075-T6 Aluminum, Narrow Wide Chain Ring (46T)
- Crankset
- Sunrace M910 Crankset MTB 9 sp. BCD64/104 Square 175mm Black (crank arms only) M910 Crankset MTB 9sp
- Pedals
- Stamp 1 Stamp 1
Additional parts
- Stem
- Niner RDO Direct Mount Bike Stem 90mm Length 31.8mm Handlebar Clamp Niner RDO Direct Mount Bike Stem 90mm Length 31.8mm Handlebar Clamp
- Lights

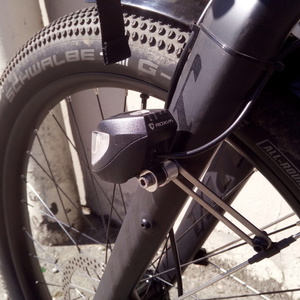

- ROXIM X4EB 50lux 400 lumen one on each side of the fork X4EB
- Saddle
- SLR TM SuperFlow S SLR TM SuperFlow S
- Handlebar
- Origin8 Strongbow handlebars Strongbow
- Computer
- Grin Technologies Cycle Analyst V3 Wp
- Grips/Tape
- GP1 BioCork
- Fender
- Planet Bike Cascadia ALX Bike Fenders 29"x65mm Cascadia ALX
- Battery
- 52V 14Ah GA Battery Hailong 1 With a Bike Swift sticker on it.
- Handlebar Bag
- OUTPOST HB ROLL & DRY BAG Outpost HB roll & dry bag
- Seat Bag
- SEAT-PACK 16.5L SEAT-PACK 16.5L
- Frame Bag
- Revelate Designs Jerrycan Top tube bag Jerry Can
- Top Tube Frame Bag
- Rhinowalk Bike Bag Bike Top Tube Bag
- Multi Tool
- crankbrothers M-19 Multi-Tool M19
- Pump
- MICRO FLOOR DRIVE DIGITAL HVG MICRO FLOOR DRIVE DIGITAL HVG
- Pump
- Co2 Cartridge valve
