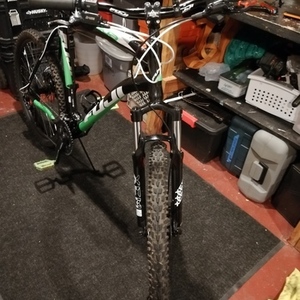

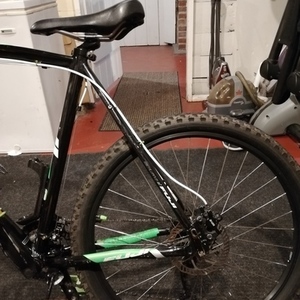

2012 Fuji Nevada 2.0

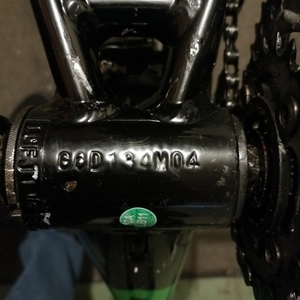

- Serial
-
1CFJ11F15767 - Manufacturer
- Fuji
- Model
- Nevada 2.0
- Year
- 2012
- Primary colors
- Black, Green, and White
- Frame Material
- Aluminum
- Wheel diameter
- 26in
- Tire width
- Wide tire
- Distinguishing features
-
A1-SL alloy w/ PowerCurve down tube, hydroformed top tube, oversized seat tube and semi-integrated head tube, double water bottle mounts. Rear triangle: A1-SL alloy w/ S-bend stay, cold forged dropout and disc mount w/ replaceable hanger
Frame and fork
- Fork
- SR Suntour XCM w/ mechanical lockout, 100mm travel
- Headset
- Fuji custom 1 1/8" semi-integrated, 30mm spacers
Wheels
- Front Wheel
- Fuji mountain disc 32H hubs, Jalco AX430 alloy disc rims
- Rear Wheel
- Fuji mountain disc 32H hubs, Jalco AX430 alloy disc rims
- Front Tire
- Hutchinson Scorpion 26x2.0 or Kenda K-837F/K-848R ATB, 26x2.1"
- Rear Tire
- Hutchinson Scorpion 26x2.0 or Kenda K-837F/K-848R ATB, 26x2.1"
Drivetrain and brakes
- Crankset
- Shimano Alivio, 22/32/44T

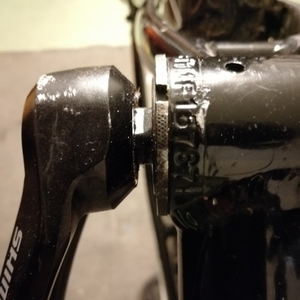

- Bottom Bracket
- Sealed cartridge bearing square taper
- Pedals
- FPD w/ Boron axle
- Front Derailleur
- Shimano Alivio, 34.9mm
- Rear Derailleur
- Shimano Deore SGS top normal, 9-speed
- Front Shifter
- Shimano Alivio Rapid Fire, 27-speed
- Rear Shifter
- Shimano Alivio Rapid Fire, 27-speed
- Cog/Cassette/Freewheel
- Shimano HG20, 11-34T 9-speed
- Chain
- KMC Z99, 9-speed
- Front Brake
- Tektro Draco hydraulic disc, 160mm rotor
- Rear Brake
- Tektro Draco hydraulic disc, 160mm rotor
- Front Brake Lever
- Tektro Draco hydraulic disc
- Rear Brake Lever
- Tektro Draco hydraulic disc
Additional parts
- Handlebar
- Fuji alloy riser bar, 20mm rise, 6° sweep, 31.8mm, 640mm wide
- Stem
- Fuji forged alloy w/ removable faceplate
- Grips/Tape
- Fuji dual density kraton
- Saddle
- Fuji sport mountain w/ steel rails
- Seatpost
- Fuji alloy micro-adjust, 31.6x350mm
