2012 Jamis Coda Comp

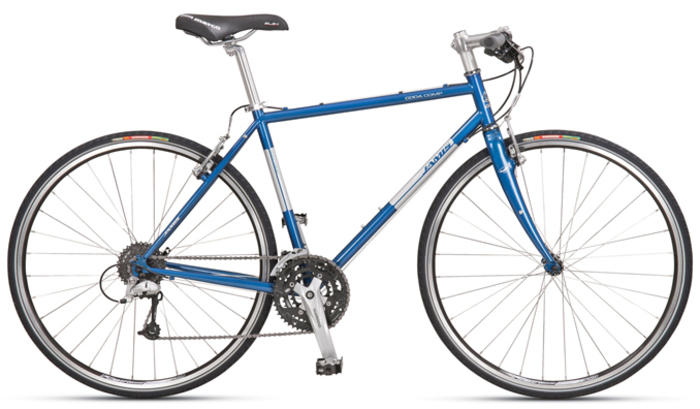

Stock photo of a 2012 Coda Comp Color may not match!
- Serial
-
U117U30328 - Manufacturer
- Jamis
- Model
- Coda Comp
- Year
- 2012
- Primary colors
- Blue and Silver, gray or bare metal
- Frame size
- 21IN
- Frame Material
- Steel
- Wheel diameter
- 700 C
- Tire width
- Narrow tire
- Drivetrain front
- 3
- Drivetrain rear
- 9
- Distinguishing features
-
Reynolds 520 double-butted chromoly main tubes, extended head tube with reinforced collars, double tapered cromo stays, forged dropouts with eyelets
Frame and fork
- Headset
- Chrome plated aheadset, 1 1/8"
- Fork
- Carbon fiber unicrown with brake mounts, low-rider carrier mounts and forged dropouts with single eyelets
Wheels
- Rear Tire
- Vittoria Randonneur with Double Shielding puncture protection and reflective sidewalls, 700 x 32c
- Front Tire
- Vittoria Randonneur with Double Shielding puncture protection and reflective sidewalls, 700 x 32c
- Rear Wheel
- Alex ID-19 double wall alloy rims with GSW sidewall, 32H, Shimano 2200 hubs with QR and 14g stainless steel spokes
- Front Wheel
- Alex ID-19 double wall alloy rims with GSW sidewall, 32H, Shimano 2200 hubs with QR and 14g stainless steel spokes
Drivetrain and brakes
- Pedals
- Full alloy platform, toe clip attachable
- Crankset
- Shimano Acera FC-M391 triple, 48/36/26T, 170mm (15-17"), 175mm (19-23")
- Cog/Cassette/Freewheel
- Shimano 9-Speed 11-32T
- Chain
- Shimano 9-Speed
- Rear Shifter
- Shimano Alivio Rapidfire Plus SL-M430, 27-Speed
- Front Shifter
- Shimano Alivio Rapidfire Plus SL-M430, 27-Speed
- Rear Derailleur
- Shimano Deore M591 SGS rear and Alivio M430 bottom pull front
- Front Derailleur
- Shimano Deore M591 SGS rear and Alivio M430 bottom pull front
Additional parts
- Saddle
- Selle San Marco Elba with Syntex + Kev cover and carbon steel rails
- Seatpost
- Jamis alloy micro-adjust, 27.2 x 350mm alloy clamp with QR seatpin
- Grips/Tape
- Anatomic double density kraton grip with end plug
- Stem
- NVO Components TM-3 adjustable threadless system (ATS) forged aluminum stem, 10JAMIS_DEGREE x 90mm (15"), 105mm (17-19"), 115mm (21-23"). ATS shim length 100mm
- Handlebar
- Jamis flat bar, 6061 T-6 aluminum, 31.8 x 10JAMIS_DEGREE sweep x 580mm Added barends
