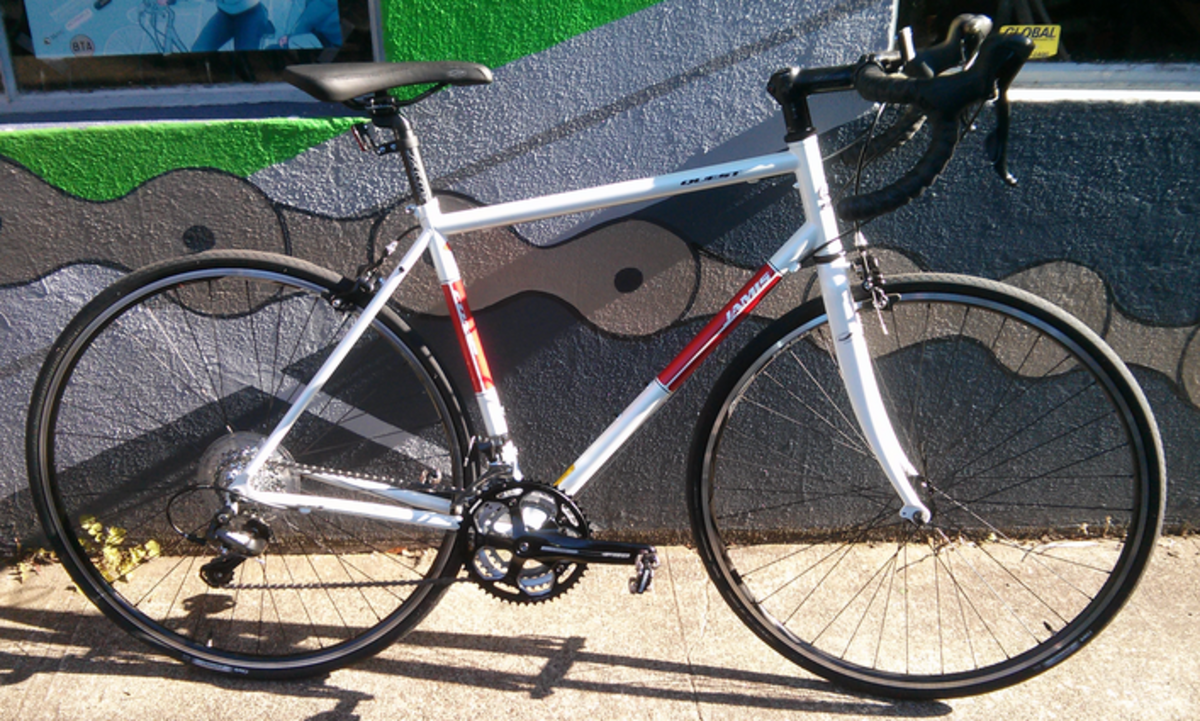

2014 Jamis Quest Comp
- Serial
-
U138U20310 - Manufacturer
- Jamis
- Model
- Quest Comp
- Year
- 2014
- Primary colors
- White and Red
- Frame size
- 54CM
- Frame Material
- Steel
- Wheel diameter
- 700 C
- Tire width
- Narrow tire
- Drivetrain front
- 3
- Drivetrain rear
- 9
- Distinguishing features
-
Reynolds 520 double-butted chromoly main tubes featuring, SST tubing diameters, sloping top tube frame design, double-tapered cromo stays, forged dropouts with single eyelets
Frame and fork
- Headset
- Ritchey LB AheadSet, 1 1/8"
- Fork
- Jamis Road carbon composite with forged alloy dropouts with single eyelet
Wheels
- Rear Tire
- Vittoria Zaffiro, 700 x 25c
- Front Tire
- Vittoria Zaffiro, 700 x 25c
- Rear Wheel
- Alex Race24 rims with CSW sidewalls, 28/32H, Formula alloy hubs with QR and 14g stainless steel spokes
- Front Wheel
- Alex Race24 rims with CSW sidewalls, 28/32H, Formula alloy hubs with QR and 14g stainless steel spokes
Drivetrain and brakes
- Rear Brake
- Tektro R317 long reach dual-pivot calipers with adjustable pads and Shimano Sora ST-3500 STI brake levers
- Front Brake
- Tektro R317 long reach dual-pivot calipers with adjustable pads and Shimano Sora ST-3500 STI brake levers
- Pedals
- Touring platform style, full alloy with toe clips
- Bottom Bracket
- FSA sealed cartridge, 68 x 116mm
- Crankset
- FSA Vero triple, 50/39/30T, 170mm (48/51), 172.5mm (54/56), 175mm (58/61)
- Cog/Cassette/Freewheel
- SRAM PG-950 9-Speed 11-28T
- Chain
- KMC Z99
- Rear Shifter
- Shimano Sora ST-3500 Dual Control STI,27-Speed
- Front Shifter
- Shimano Sora ST-3500 Dual Control STI,27-Speed
- Rear Derailleur
- Shimano Sora RD-3500GS rear and Sora FD-3503 front with 28.6mm alloy clamp
- Front Derailleur
- Shimano Sora RD-3500GS rear and Sora FD-3503 front with 28.6mm alloy clamp
Additional parts
- Saddle
- Jamis Touring Sport with pressure relief cut-out and satin steel rails
- Seatpost
- Jamis alloy micro-adjust, 27.2 x 300mm with cromo seat pin
- Grips/Tape
- Jamis suede tape with Jamis logo and "J" end plug
- Stem
- Jamis adjustable threadless system (ATS) forged aluminum stem, 10JAMIS_DEGREE x 90mm (48/51), 105mm (54/56), 115mm (58/61). ATS shim length 80mm
- Handlebar
- Ritchey Comp Logic Curve, 6061 aluminum, 31.8 x 400mm (48/51), 420mm (54/56), 440mm (58/61)
