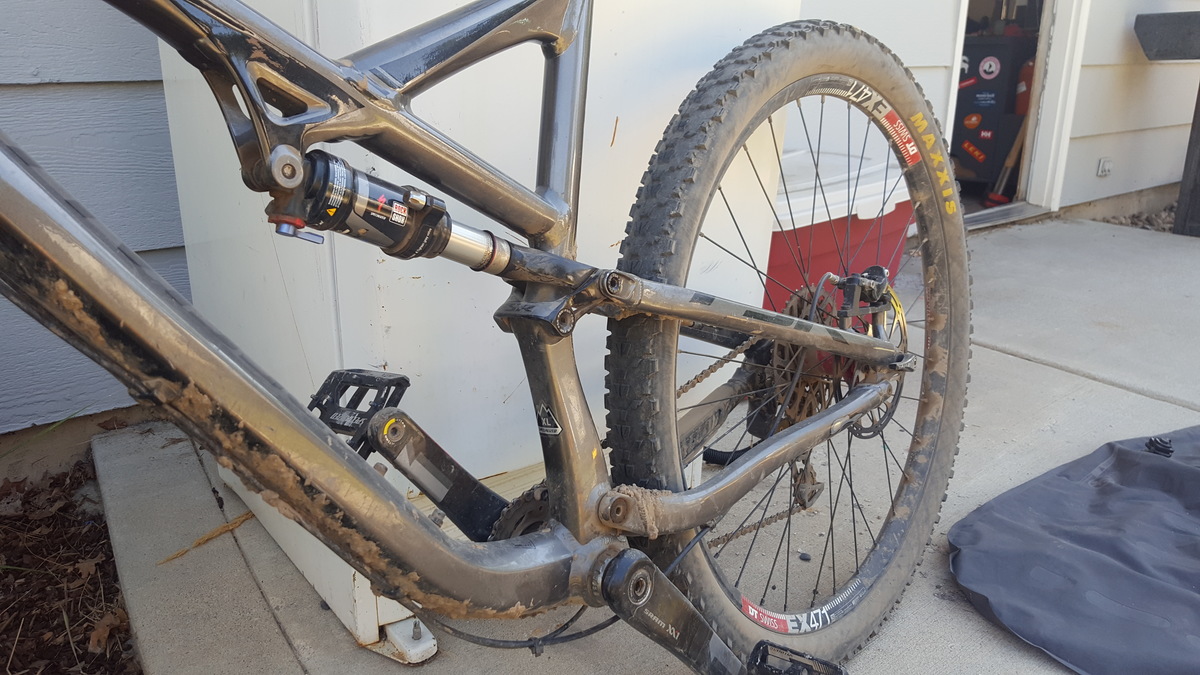

2014 Specialized Camber 29
- Serial
-
WSBC601 015098I BI2542 - Manufacturer
- Specialized
- Model
- Camber 29
- Year
- 2014
- Primary colors
- Silver, gray or bare metal
- Wheel diameter
- 700 C
- Tire width
- Wide tire
- Distinguishing features
-
M5 hydroformed tubing, 29" geometry, tapered headtube, internal Command Post BlackLite routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, bolt-on cable guides, 110mm travel
Frame and fork
- Rear Suspension
- X-Fusion O2 RL, air spring, and reb adj., 197x48mm
- Fork
- Suntour XCR 29, coil spring, tapered alloy steerer, lockout and reb adj., S: soft, M: standard, L/XL: hard, 110mm travel
- Headset
- 1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings
Wheels
- Front Rim
- Specialized, alloy disc, 24mm wide, 32h
- Rear Rim
- Specialized, alloy disc, 24mm wide, 32h
- Front Hub
- Specialized Hi Lo disc, OS28 end caps, sealed cartridge bearings, QR, 32h
- Rear Hub
- Specialized disc, 4x-sealed cartridge bearings, 12mm thru-axle, 142mm spacing, 32h
- Spokes
- Stainless, 2.0mm
- Front Tire
- Specialized Ground Control, 2Bliss Ready, 29x2.3", foldable aramid bead, 60TPI
- Rear Tire
- Specialized Ground Control, 2Bliss Ready, 29x2.1", foldable aramid bead, 60 TPI
Drivetrain and brakes
- Front Brake
- Tektro Draco 2, ceramic pads, Light Wave rotor, S/M: 180mm, Others: 200mm rotor
- Rear Brake
- Tektro Draco 2, ceramic pads, Light Wave rotor, S/M: 160mm, Others: 180mm rotor
- Front Brake Lever
- Tektro Draco 2, hydraulic disc
- Rear Brake Lever
- Tektro Draco 2, hydraulic disc
- Front Derailleur
- Shimano SLX M660, E-type for DMD, top-swing, bottom pull
- Rear Derailleur
- Shimano Deore Shadow M592, 9-speed, SGS long cage
- Front Shifter
- Shimano Alivio, 9-speed, trigger
- Rear Shifter
- Shimano Alivio, 9-speed, trigger
- Cog/Cassette/Freewheel
- Shimano HG-20, 9-speed, 11-34
- Chain
- KMC X9, 9-speed, nickel plate, reusable Missing Link
- Crankset
- Shimano Alivio, Octalink spline, replaceable rings, S: 170mm, Others: 175mm
- Bottom Bracket
- Shimano BB-ES25, Octalink spline, cartridge bearings, 73mm shell
Additional parts
- Stem
- Specialized Trail, 6061 alloy, 4-bolt, 8-degree rise, 31.8mm clamp
- Handlebar
- Specialized XC Mini-Riser, 6000 butted alloy, 720mm wide, 10mm rise, 8-degree backsweep, 6-degree upsweep, 31.8mm
- Grips/Tape
- Specialized Sip Grip, non-locking
- Saddle
- Body Geometry Rival, 143mm width
- Seatpost
- Specialized 6061 alloy, 2-bolt micro-adjust setback, 30.9mm, S/M:350mm, others:400mm
- Seatpost Clamp
- 7050 hard anodized alloy collar, QR, 34.9mm
- Other
- Bottle cage w/ SWAT Technology compatible (not included)
