2012 SE Bikes Draft

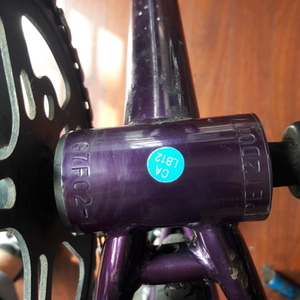

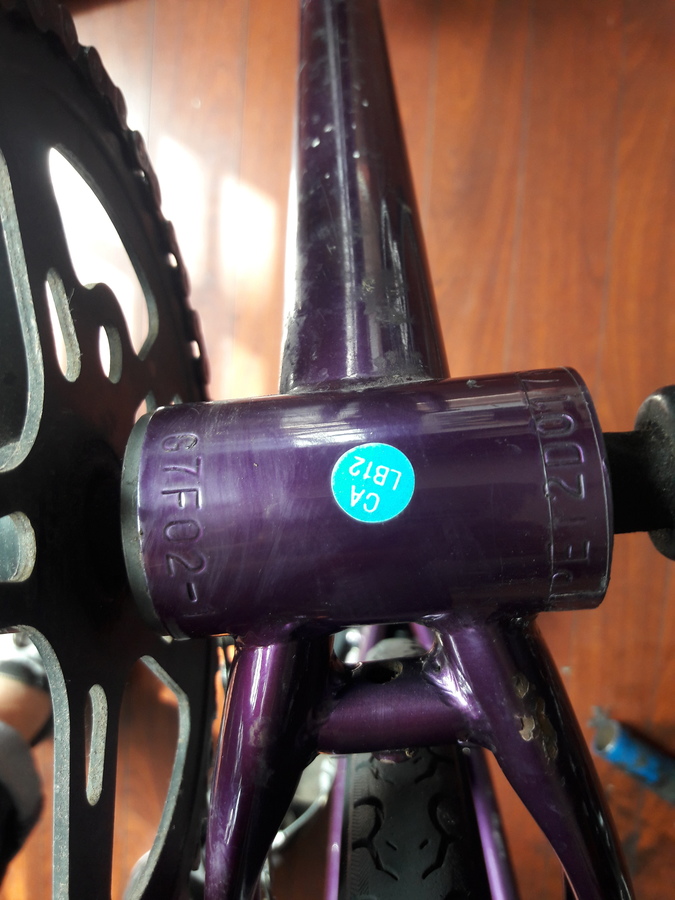

- Serial
-
TDEP12D0176 67F02-1 - Manufacturer
- SE Bikes
- Model
- Draft
- Year
- 2012
- Primary colors
- Purple
- Frame size
- M
- Frame Material
- Steel
- Wheel diameter
- 700 C
- Tire width
- Narrow tire
- Drivetrain front
- 1
- Drivetrain rear
- 1
- Distinguishing features
-
Urban Single Speed Design, Hi-Ten, Water Bottle & Fender Mounts, All Sizes Can Barspin
Frame and fork
- Fork
- Hi-Ten Straight Leg w/ Fender Mounts & Wide Tire Clearance
- Headset
- Tange 1-1/8" Threadless
Wheels
- Front Wheel
- SE Low Flange Alloy, 16T Freewheel, 36H Hubs w/ High Profile Double Wall Rims
- Rear Wheel
- SE Low Flange Alloy, 16T Freewheel, 36H Hubs w/ High Profile Double Wall Rims
- Front Tire
- Kenda Kwest 700x28c (43cm bike:Kenda Kriterium 650x28c)
- Rear Tire
- Kenda Kwest 700x28c (43cm bike:Kenda Kriterium 650x28c)
Drivetrain and brakes
- Chain
- KMC Z410
- Crankset
- SE Steel, Euro Cartridge BB, 42T
- Pedals
- FPD Resin Platform
- Front Brake
- Radius Alloy Caliper
- Rear Brake
- Radius Alloy Caliper
- Front Brake Lever
- Radius, 2-Finger Alloy, F & R
- Rear Brake Lever
- Radius, 2-Finger Alloy, F & R
Additional parts
- Handlebar
- SE 23 x 1.5" Riser Bar
- Stem
- SE Zero Degree Drop, 25.4mm Clamp
- Grips/Tape
- SE Racing Wing Grip w/ Rubber SE End Plugs
- Saddle
- SE Classic w/ Bottle Opener
- Seatpost
- SE Straight Post, 27.2
- Other
- Removable SE Brake Cable Clips
