2013 Jamis Coda Comp

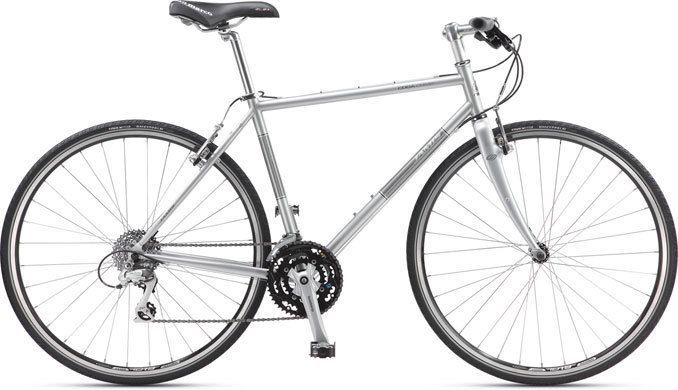

Stock photo of a 2013 Coda Comp Color may not match!
- Serial
-
U133U13410 - Other serial/registration/sticker
- 4136208
- Manufacturer
- Jamis
- Name
- Jamis Coda Comp
- Model
- Coda Comp
- Year
- 2013
- Primary colors
- Silver, gray or bare metal
- Frame size
- 17IN
- Frame Material
- Steel
- Wheel diameter
- 700 C
- Tire width
- Narrow tire
- Distinguishing features
-
Reynolds 520 double-butted chromoly main tubes, extended head tube with reinforced collars, double tapered cromo stays, forged dropouts with eyelets
Frame and fork
- Fork
- Carbon fiber unicrown with brake mounts, low-rider carrier mounts and forged dropouts with single eyelets
- Headset
- Chrome plated AheadSet, 1 1/8"
Wheels
- Front Wheel
- Alex ID-19 double wall alloy rims with GSW sidewall, 32H, Formula hubs with QR and 14g stainless steel spokes
- Front Tire
- Vittoria Randonneur with Double Shielding puncture protection and reflective sidewalls, 700 x 32c
- Rear Tire
- Vittoria Randonneur with Double Shielding puncture protection and reflective sidewalls, 700 x 32c
- Rear Wheel
- Alex ID-19 double wall alloy rims with GSW sidewall, 32H, Formula hubs with QR and 14g stainless steel spokes Coda Comp
Drivetrain and brakes
- Front Derailleur
- Shimano Alivio M410 SGS rear and M191 bottom pull front
- Rear Derailleur
- Shimano Alivio M410 SGS rear and M191 bottom pull front
- Front Shifter
- Shimano RapidFire Plus ST-M310, 24-Speed
- Rear Shifter
- Shimano RapidFire Plus ST-M310, 24-Speed
- Chain
- KMC Z7
- Cog/Cassette/Freewheel
- SRAM PG830 8-Speed 11-32T
- Crankset
- Shimano Acera FC-M361 triple, 48/38/28T, 170mm (15-19"), 175mm (21-23")
- Pedals
- Full alloy platform, toe clip attachable
- Bottom Bracket
- FSA sealed cartridge, 68 x 110.5mm
- Front Brake
- Tektro alloy linear-pull brakes with front power modulator and Shimano brake levers
- Rear Brake
- Tektro alloy linear-pull brakes with front power modulator and Shimano brake levers
Additional parts
- Handlebar
- Jamis flat bar, 6061 T-6 aluminum, 25.4 x 10JAMIS_DEGREE sweep x 580mm
- Stem
- NVO Components TM-4 adjustable threadless system (ATS) forged aluminum stem, 25.4 x 10JAMIS_DEGREE x 90mm (15"), 105mm (17-19"), 115mm (21-23"). ATS shim length 100mm
- Grips/Tape
- Anatomic double density kraton grip with end plug
- Seatpost
- Jamis alloy micro-adjust, 27.2 x 350mm alloy clamp with QR seatpin
- Saddle
- Selle San Marco Elba with Syntex + Kevlar cover and carbon steel rails
