2013 Fuji Nevada 1.7
- Serial

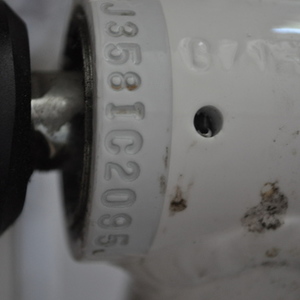

- J358IC2095
- Manufacturer
- Fuji
- Model
- Nevada 1.7
- Year
- 2013
- Primary colors
- White
- Frame size
- XL
- Frame Material
- Aluminum
- Wheel diameter
- 700 C
- Tire width
- Wide tire
- Drivetrain front
- 3
- Drivetrain rear
- 8
- Distinguishing features
-
A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube. Rear triangle: A1-SL alloy w/ S-bend chainstays, cold-forged dropout and replaceable hanger
Frame and fork
- Headset
- FSA 1 1/8" semi-integrated, caged bearings
- Fork
- SR Suntour SF13-XCM w/ 100mm travel
Wheels
- Rear Tire
- Vera Eos, 26" x 2.1", 30 tpi
- Front Tire
- Vera Eos, 26" x 2.1", 30 tpi
- Rear Wheel
- Formula FM21 front / Shimano RM30 rear, 32H alloy hubs, Vera Terra DPM23 rims
- Front Wheel
- Formula FM21 front / Shimano RM30 rear, 32H alloy hubs, Vera Terra DPM23 rims
Drivetrain and brakes
- Rear Shift And Brake Lever
- Shimano EF51 2-finger brake/shifter combo
- Front Shift And Brake Lever
- Shimano EF51 2-finger brake/shifter combo
- Rear Brake
- Tektro alloy, linear pull
- Front Brake
- Tektro alloy, linear pull
- Chain
- Fixed Star, F-51, 8-speed
- Cog/Cassette/Freewheel
- Shimano HG31, 11-34T, 8-speed
- Rear Shifter
- Shimano EF51 EZ Fire, 8-speed
- Front Shifter
- Shimano EF51 EZ Fire, 8-speed
- Rear Derailleur
- Shimano Acera, M360 SGS, 8-speed
- Front Derailleur
- Shimano M190, 34.9mm
- Pedals
- Plastic platform
- Bottom Bracket
- FSA square taper w/ sealed cartridge bearing
- Crankset
- Shimano M171, 42/34/24T
Additional parts
- Seatpost
- Fuji, alloy double-bolt micro-adjust, 31.6mm x 350mm
- Saddle
- Oval Mountain w/ satin steel rails
- Grips/Tape
- Oval dual-density Kraton
- Stem
- Fuji, melt-forged alloy, 25.4mm clamp diameter, 20° rise
- Handlebar
- Fuji steel rise bar, 6° degree sweep, 25.4mm diameter, 660mm wide, 30mm rise
