2014 Jamis Nova Sport

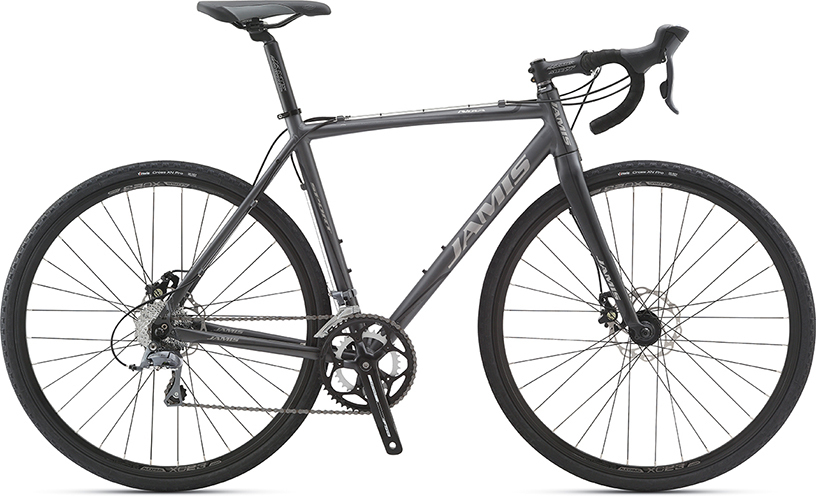

Stock photo of a 2014 Nova Sport Color may not match!
- Serial
-
U137K02158 - Manufacturer
- Jamis
- Model
- Nova Sport
- Year
- 2014
- Primary colors
- Black
- Frame size
- 54CM
- Frame Material
- Aluminum
- Wheel diameter
- 700 C
- Tire width
- Narrow tire
- Distinguishing features
-
6061 aluminum double-butted main frame, hydro-formed top tube for comfortable portage, 1 1/8-1.5" tapered head tube, 34.9mm seat tube, disc brake mounts, replaceable derailleur hanger, single eyelet
Frame and fork
- Fork
- Jamis Cross aluminum fork, tapered chromoly steerer, integrated cable cradles with post disc brake mounts and fender eyelets
- Headset
- FSA, integrated, 1 1/8-1 1/2"
Wheels
- Front Wheel
- Alex XC23 eyeleted disc specific rim, 32H, Formula alloy disc road hubs and 14g stainless steel spokes
- Rear Wheel
- Alex XC23 eyeleted disc specific rim, 32H, Formula alloy disc road hubs and 14g stainless steel spokes
- Front Tire
- Vittoria, Cross XN, 700 x 32c
- Rear Tire
- Vittoria, Cross XN, 700 x 32c
Drivetrain and brakes
- Front Derailleur
- Shimano Claris RD-2400 rear and Claris FD-2400 front with 34.9mm alloy clamp
- Rear Derailleur
- Shimano Claris RD-2400 rear and Claris FD-2400 front with 34.9mm alloy clamp
- Front Shifter
- Shimano Claris ST-2400 Dual Control STI, 16-Speed
- Rear Shifter
- Shimano Claris ST-2400 Dual Control STI, 16-Speed
- Chain
- KMC Z7
- Cog/Cassette/Freewheel
- SRAM PG-830 8-Speed 11-30T
- Crankset
- FSA Tempo compact double, 50/34T, 170mm (48/51) 172.5mm (54/56) 175mm (58/61)
- Bottom Bracket
- FSA sealed cartridge, 68 x 110.5mm
- Front Brake
- Tektro Lyra mechanical cable actuated disc brake with 160mm wave rotors and Shimano ST-2300 STI brake levers
- Rear Brake
- Tektro Lyra mechanical cable actuated disc brake with 160mm wave rotors and Shimano ST-2300 STI brake levers
Additional parts
- Handlebar
- Jamis Ergo, 6061 aluminum, 6061 aluminum, 31.8 x 380 (48) 400mm (51-54), 420mm (56/61).
- Stem
- Jamis Road, 3D forged 6061 alloy, 7JAMIS_DEGREE x 90mm (48/51), 100mm (54/56), 120mm (58/61)
- Grips/Tape
- Jamis suede tape with Jamis logo and "J" end plug
- Seatpost
- Jamis Road, micro-adjust, 31.6 x 300mm, alloy clamp with cromo seat pin
- Saddle
- Jamis Road with SL top, front and rear bumpers and satin steel rails
