2014 Specialized Camber EVO 29

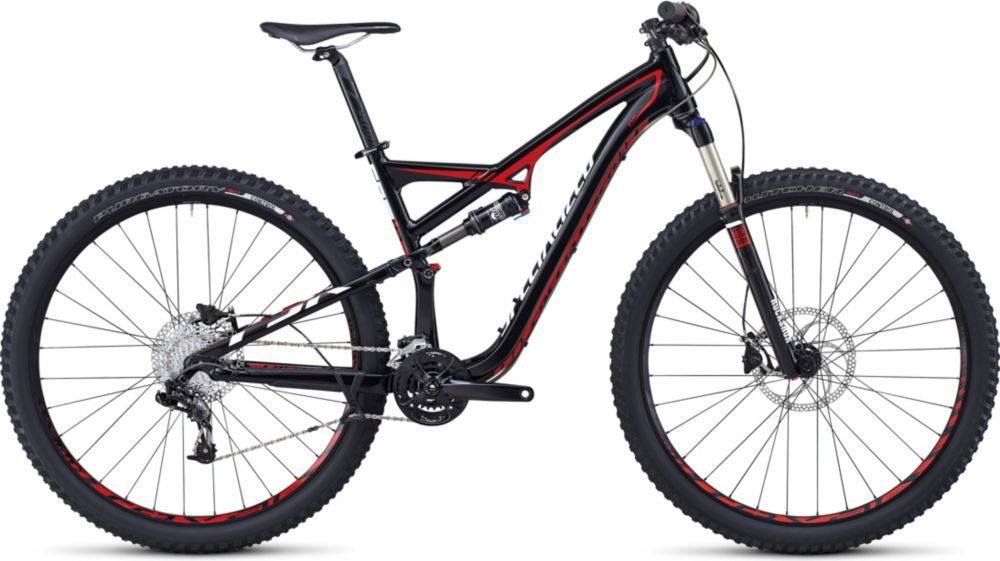

Stock photo of a 2014 Camber EVO 29 Color may not match!
- Serial
-
2KS J63790 - Manufacturer
- Specialized
- Model
- Camber EVO 29
- Year
- 2014
- Primary colors
- Black
- Wheel diameter
- 700 C
- Tire width
- Wide tire
- Distinguishing features
-
M5 hydroformed tubing, EVO geometry, tapered headtube, PF30 BB, internal Command Post BlackLite routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, bolt-on cable guides, 120mm travel
Frame and fork
- Rear Suspension
- Fox Float CTD Evolution, w/ AUTOSAG, air spring, lockout and reb adj., 197x51mm
- Fork
- RockShox Reba RL 29, Solo Air spring, alloy tapered steerer, lockout and reb adj., 15mm thru-axle, 120mm travel
- Headset
- 1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings
Wheels
- Front Rim
- Roval 29, alloy disc, 26mm wide, 32h
- Rear Rim
- Roval 29, alloy disc, 26mm wide, 32h
- Front Hub
- Specialized Hi Lo disc, 15mm thru-axle, sealed cartridge bearings, QR, 32h
- Rear Hub
- Specialized Hi Lo disc, 4x-sealed cartridge bearings, 12mm thru-axle, 142+ spacing, 32h
- Spokes
- DT Industry Stainless, 3X front/rear 2.0
- Front Tire
- Specialized Butcher Control, 2Bliss Ready, 29x2.3", foldable aramid bead, dual-compound, 60TPI
- Rear Tire
- Specialized Purgatory Control, 2Bliss Ready, 29x2.3", foldable aramid bead, dual-compound, 60 TPI
Drivetrain and brakes
- Front Brake
- Formula C1, alloy caliper, metallic pad, S/M: 180mm, L/XL: 200mm rotor
- Rear Brake
- Formula C1, alloy caliper, metallic pad, S/M: 160mm, L/XL: 180mm rotor
- Front Brake Lever
- Formula C1, hydraulic disc, tooled reach adj.
- Rear Brake Lever
- Formula C1, hydraulic disc, tooled reach adj.
- Front Derailleur
- SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull
- Rear Derailleur
- SRAM X9 Type 2, 10-speed, mid cage
- Front Shifter
- SRAM X7, 10-speed, w/ MatchMaker clamp
- Rear Shifter
- SRAM X7, 10-speed, w/ MatchMaker clamp
- Cog/Cassette/Freewheel
- SRAM PG-1030, 10-speed, 11-36
- Chain
- SRAM PC 1031, 10-speed, PowerLink
- Crankset
- Custom SRAM S-1250, 10-speed Trail double, PF30 spindle, S: 170mm, Others: 175mm
- Chainrings
- 36/22, w/ alloy guard
- Bottom Bracket
- SRAM PF30, OS press-in bearings, sealed cartridge
Additional parts
- Stem
- Specialized Trail, 6061 alloy, 4-bolt, 8-degree rise, 6-degree rise, 31.8mm clamp
- Handlebar
- Specialized XC Mini Riser, 6000 butted alloy, 750mm wide, 10mm rise, 8-degree backsweep, 6-degree upsweep, 31.8mm
- Grips/Tape
- Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
- Saddle
- Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
- Seatpost
- Specialized 2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, Others: 400mm
- Seatpost Clamp
- 7050 hard anodized alloy collar, QR, 34.9mm
- Other
- Bottle cage w/ SWAT Technology compatible (not included)
