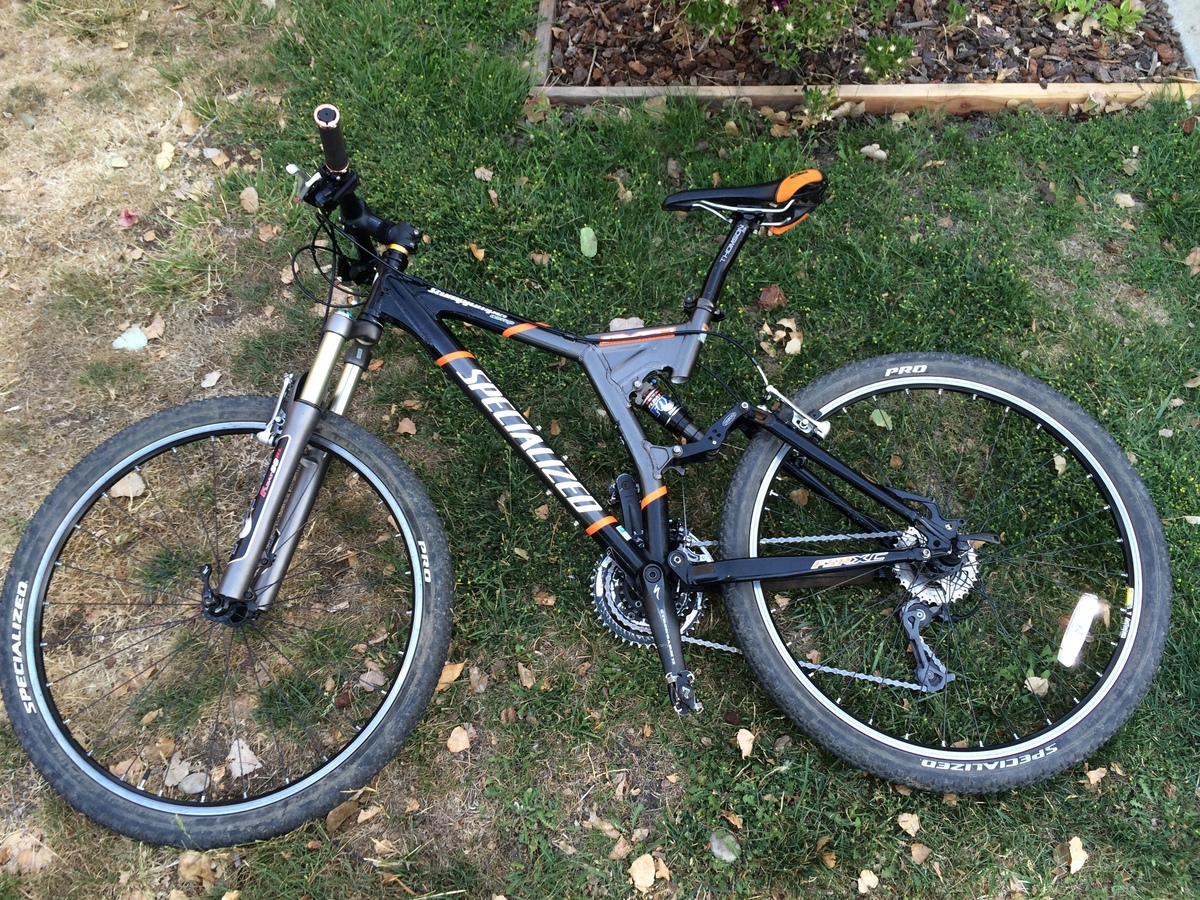

2002 Specialized Stumpjumper FSRxc Comp
- Serial
-
A20601626 - Manufacturer
- Specialized
- Name
- Max’s mountain bike
- Model
- Stumpjumper FSRxc Comp
- Year
- 2002
- Primary colors
- Black
- Frame size
- S
- Frame Material
- Aluminum
- Wheel diameter
- 26in
- Tire width
- Wide tire
- Distinguishing features
-
M4 Manipulated Alloy FSRxc frame, 75-90mm adjustable travel, disc compatible, disc and rim brake cable routing, sealed cartridge bearing pivots, two sets of water bottle bosses, replaceable derailleur hanger
Frame and fork
- Rear Suspension
- Fox Float RL, adjustable rebound, lockout, 6.0x1.25"
- Fork
- Fox Float RL, 80mm travel, adjustable rebound & compression lockout
- Headset
- Threadless alloy, 1-1/8", w/sealed cartridge bearings
Wheels
- Front Rim
- Mavic 225, 26", 28h/32h
- Rear Rim
- Mavic 225, 26", 28h/32h
- Front Hub
- Specialized Stout, 28h, forged alloy, black
- Rear Hub
- Shimano Deore LX, 32h forged alloy, 9-speed, black
- Spokes
- DT 15GA, black stainless, alloy nipples
- Front Tire
- Specialized Rockster Pro, 26x1.9, aramid bead, blackwall
- Rear Tire
- Specialized Rockster Pro, 26x1.9, aramid bead, blackwall
- Front Tube
- Specialized Turbo ultra light, presta valve
- Rear Tube
- Specialized Turbo ultra light, presta valve
Drivetrain and brakes
- Front Brake
- Avid SD-5R, alloy, linear pull, w/Rim Wrangler cartridge pad
- Rear Brake
- Avid SD-5R, alloy, linear pull, w/Rim Wrangler cartridge pad
- Front Brake Lever
- Avid Speed Dial 5, pewter/black
- Rear Brake Lever
- Avid Speed Dial 5, pewter/black
- Front Derailleur
- Shimano Deore LX, e-type, top pull
- Rear Derailleur
- Shimano XTR
- Front Shifter
- Shimano Deore LX, 9-speed
- Rear Shifter
- Shimano Deore LX, 9-speed
- Cog/Cassette/Freewheel
- Shimano HG 50, 11x32, 9-speed
- Chain
- Shimano HG 53, 9-speed
- Crankset
- Specialized StrongArm II, splined taper (Octalink), one-piece design
- Chainrings
- 44Ax32Ax22S, 64 x104 bcd, 4mm thick outer ring
- Bottom Bracket
- Shimano BB-ES-50E, splined taper (Octalink), 68x113 e-type
- Pedals
- Shimano 515, clipless, w/reflectors
Additional parts
- Stem
- Specialized alloy,10-degree rise, black
- Handlebar
- Specialized 6061 butted alloy, flat with 9-degree sweep, 645mm width, black
- Grips/Tape
- S-Works Double Density Pro
- Saddle
- Specialized Pro w/Body Geometry Technology, w/hollow Cr-Mo rails (OEM)
- Seatpost
- Specialized Alloy, 30.9x350/400mm, black
- Seatpost Clamp
- Specialized alloy, 35.0 ID, quick release lever, black
- Other
- Chainstay protector, reflectors, owners manual
