2011 Specialized Allez Elite Compact

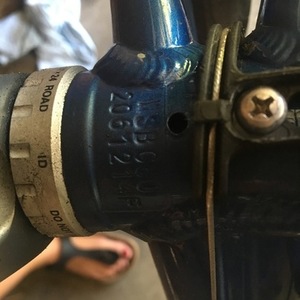

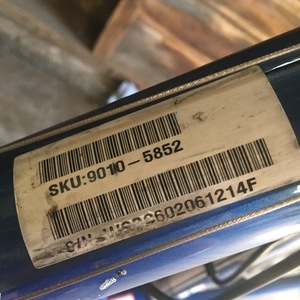

- Serial
-
WSBC602061214F - Manufacturer
- Specialized
- Model
- Allez Elite Compact
- Year
- 2011
- Primary colors
- Blue and White
- Frame size
- 52CM
- Frame Material
- Aluminum
- Wheel diameter
- 700 C
- Tire width
- Narrow tire
- Distinguishing features
-
Specialized E5 aluminum, fully manipulated tubing, smooth weld compact race design, 1.5" integrated headset; white seat, white handlebar tape, white lettering, 52 cm frame w/ narrow custom-fit drop-bars
Frame and fork
- Fork
- Specialized FACT carbon, carbon legs, aluminum crown and steerer, 1.5" lower bearing
- Headset
- 1-1/8" upper and 1-1/5" lower Cr-Mo cartridge bearings integrated w/ headset, 20mm cone spacer with 20mm of spacers
Wheels
- Front Rim
- Mavic CXP22
- Rear Rim
- Mavic CXP22
- Front Hub
- Forged alloy Hub, sealed bearings, 28 hole, for J bend round spokes
- Rear Hub
- Forged aluminum, 32h, double sealed ball bearings, cassette, QR
- Spokes
- Stainless 14g
- Front Tire
- Specialized All Condition, 700x23c, aramid bead, 60TPI, w/ Flak Jacket protection
- Rear Tire
- Specialized All Condition, 700x23c, aramid bead, 60TPI, w/ Flak Jacket protection
- Front Tube
- Standard presta valve
- Rear Tube
- Standard presta valve
Drivetrain and brakes
- Front Brake
- Tektro cold-forged, dual pivot w/ cartridge pads
- Rear Brake
- Tektro cold-forged, dual pivot w/ cartridge pads
- Front Shift And Brake Lever
- Shimano Tiagra STI
- Rear Shift And Brake Lever
- Shimano Tiagra STI
- Front Derailleur
- Shimano Tiagra
- Rear Derailleur
- Shimano Tiagra
- Front Shifter
- Shimano Tiagra STI
- Rear Shifter
- Shimano Tiagra STI
- Cog/Cassette/Freewheel
- Shimano HG-50, 9-speed, 12-25t
- Chain
- KMC X9
- Crankset
- Shimano Tiagra
- Chainrings
- 50 x 34T
- Bottom Bracket
- With crankset
- Pedals
- Black cage, body & toe clips w/ strap
Additional parts
- Stem
- Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
- Handlebar
- Specialized Elite, 6061 aluminum, 130 drop, 90 reach, 31.8mm
- Grips/Tape
- Specialized S-Wrap, w/ gel
- Saddle
- Body Geometry Riva Road, w/ steel rails
- Seatpost
- Specialized Elite, carbon wrapped alloy, two-bolt clamp, 27.2mm
- Seatpost Clamp
- Alloy, 31.8mm
- Other
- Chain stay protector, chain catcher, derailleur hanger, clear coat, owners manual
