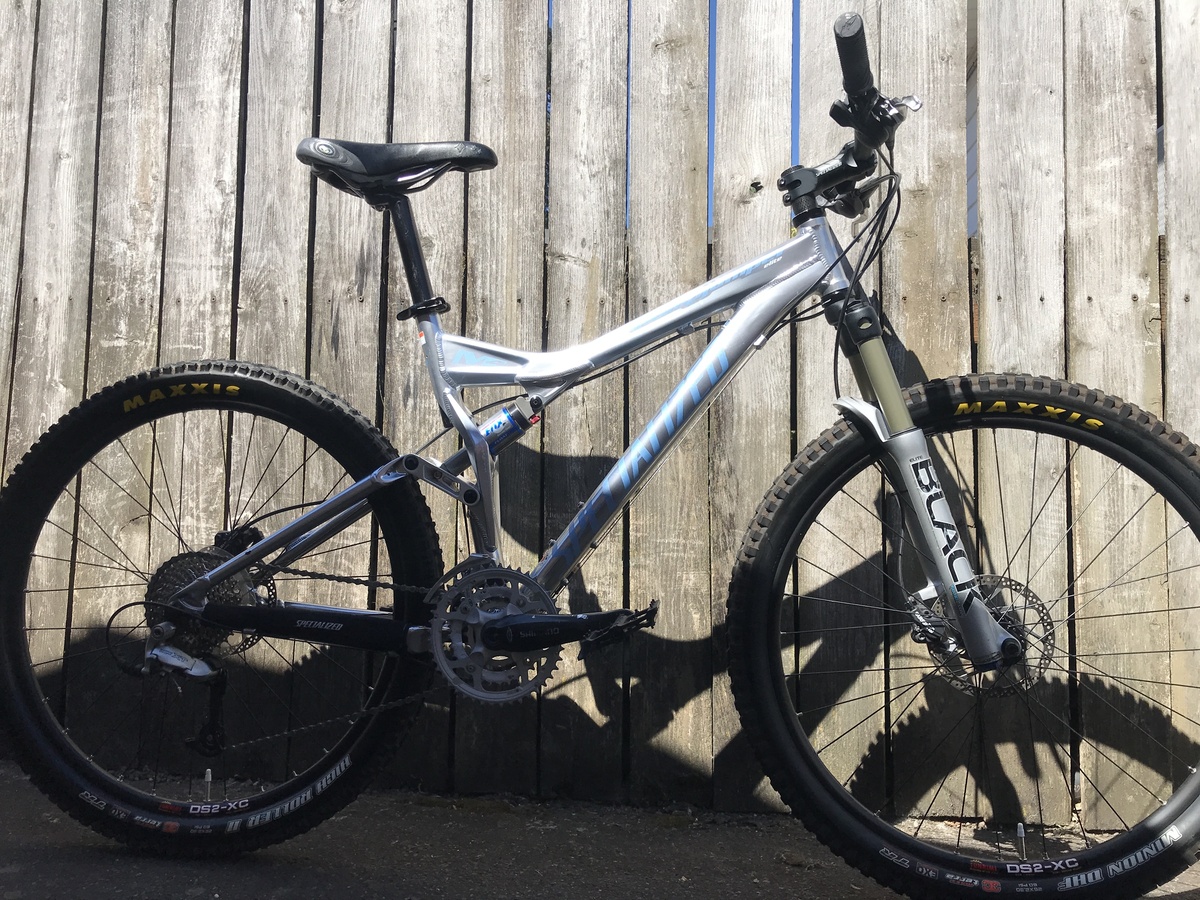

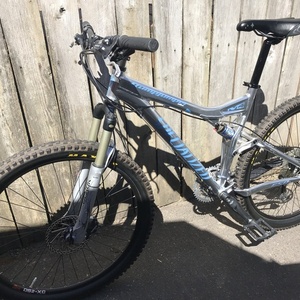

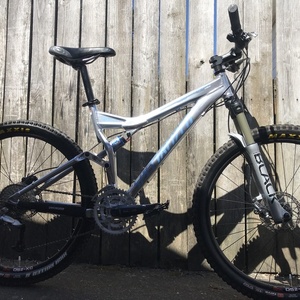

2004 Specialized Stumpjumper FSR Elite Disc Women's
- Serial
-
M4BL04302 - Manufacturer
- Specialized
- Model
- Stumpjumper FSR Elite Disc Women's
- Year
- 2004
- Primary colors
- Silver, gray or bare metal and Blue
- Frame size
- M
- Frame Material
- Aluminum
- Distinguishing features
-
FSR technology, Specialized Designs for Women geometry, M4 Manipulated Alloy frame with TransForm Monocoque TT, sealed cartridge bearings, disc compatible, 100mm travel, replaceable derailleur hanger, two sets of water bottle bosses
Frame and fork
- Rear Suspension
- Fox Float R. ProPedal pedal assisting damping. External rebound adjust, twin sleeve design for increased volume. 6.5x1.5�
- Fork
- Manitou Black Elite, 100mm travel, rebound adjust, alloy steerer, Diva light spring rate
- Headset
- 1 1/8� threadless, 3x sealed, black alloy cups, cartridge bearings, ultralight alloy top cap and bolt
Wheels
- Front Rim
- Mavic XM117 Disc, 26�, black,
- Rear Rim
- Mavic XM117 Disc, 26�, black,
- Front Hub
- Specialized Stout Disc, 32 hole, 9mm Skraxle
- Rear Hub
- Shimano M-525 Disc, 32 hole, loose ball bearings, alloy Q/R
- Spokes
- 1.8mm (15g) black stainless, brass nipples, L261/R264mm front, L260/R261mm rear
- Front Tire
- Specialized Roll-X Pro Women�s 2.0�, dual compound, aramid bead, 120 tpi
- Rear Tire
- Specialized Roll-X Pro Women�s 2.0�, dual compound, aramid bead, 120 tpi
- Front Tube
- Specialized Ultralight, presta valve
- Rear Tube
- Specialized Ultralight, presta valve
Drivetrain and brakes
- Front Brake
- Shimano M-525 hydraulic disc, 6� XT rotor
- Rear Brake
- Shimano M-525 hydraulic disc, 6� XT rotor
- Front Brake Lever
- Shimano M-525 hydraulic disc
- Rear Brake Lever
- Shimano M-525 hydraulic disc
- Front Derailleur
- Shimano M-570 LX, 34.9mm clamp, bottom pull
- Rear Derailleur
- Shimano M-750 XT, long cage, standard spring
- Front Shifter
- Shimano M-510 Deore
- Rear Shifter
- Shimano M-510 Deore
- Cog/Cassette/Freewheel
- Shimano HG-50 LX, 9-speed, 11x34t
- Chain
- Shimano HG-73
- Crankset
- Custom Shimano Hollowtech, Octalink XT Spline
- Chainrings
- 44Ax32Sx22S, 4 bolt 104/64mm pattern, steel chainring bolts
- Bottom Bracket
- Shimano ES-30 Octalink spline, 68mm shell, 121mm spindle. 50mm chainline.
- Pedals
- Shimano 515 SPD
Additional parts
- Stem
- 3-D forged CNC machined, 4 bolt, 6 degree rise, black
- Handlebar
- Specialized XC Low Rise bar, 6066 butted alloy, 6 degree upsweep, 8 degree backsweep, 640mm width
- Grips/Tape
- Specialized MTB grip, black, double density Kraton
- Saddle
- Specialized Womens Body Geometry technology, hollow Cr-Mo rails, dual density base
- Seatpost
- 2014 butted alloy, black, 30.9 x 350mm
- Seatpost Clamp
- Alloy collar with Q/R, 34.9mm clamp I.D., black
- Other
- Chain stay/seat stay protector, derailleur protector, reflectors, owners manual
