2005 Specialized Demo 9

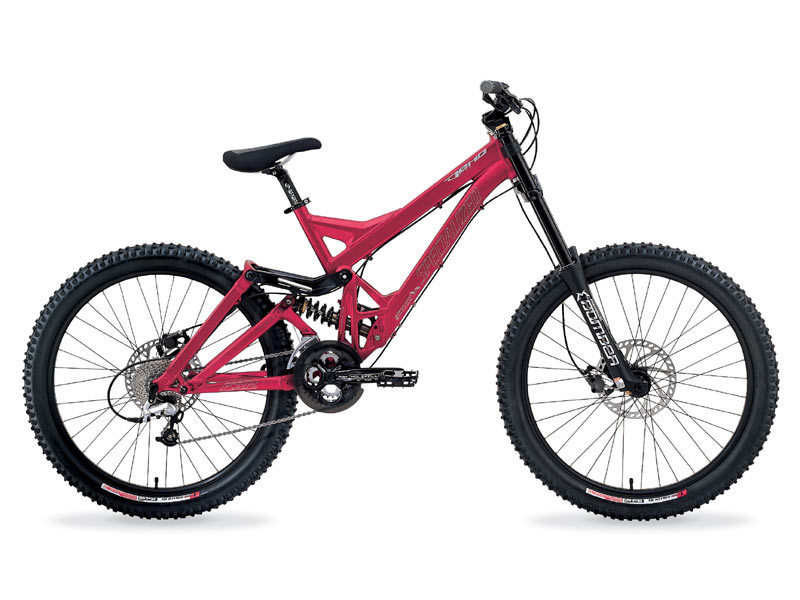

Stock photo of a 2005 Demo 9 Color may not match!
- Serial
- PL479617
- Manufacturer
- Specialized
- Model
- Demo 9
- Year
- 2005
- Primary colors
- Red
- Wheel diameter
- 26in
- Tire width
- Wide tire
- Distinguishing features
-
DEMO FSR frame. Super low center of gravity and standover with sub-seatstay actuated shock. Full cartridge bearing pivots, 9� of travel with full chainguide and front derailleur compatibility. 150mm wide 12 or 15mm thru-axle rear, ISCG mount, rear derailleur protector. 26 and 24� wheel compatible with two geometry settings, 16.7� chainstay length, forged and CNC�d OS HT, Super ORE TT/DT.
Frame and fork
- Rear Suspension
- Manitou Swinger 4-way, SPV position-sensitive damping, external adjustable pedal platform, progressivness and rebound. S:350 M:400 L:400 9.5� x 3�
- Fork
- Marzocchi 888VF, 200mm travel, dual crown, HSCV damping, 20mm thru-axle
- Headset
- Cr-Mo, 1 1/8� threadless, all alloy and steel construction, loose ball bearing with seals
Wheels
- Front Rim
- Mavic EX325 Disc, 26� front and rear, 36 hole
- Rear Rim
- Mavic EX325 Disc, 26� front and rear, 36 hole
- Front Hub
- Specialized Stout disc, 36 hole, cartridge bearings, 20mm alloy thru-axle
- Rear Hub
- Specialized Stout disc 150mm wide 36h, 12mm thu-axle disc hub
- Spokes
- DT Swiss, 2.0mm (14g) stainless, black, brass nipples
- Front Tire
- Specialized Roller RS 26 x 2.6� aramid bead, Cap Ply reinforced casing
- Rear Tire
- Specialized Roller RS 26 x 2.6� aramid bead, Cap Ply reinforced casing
- Front Tube
- Specialized 26� x 2.4/2.75�, schraeder valve
- Rear Tube
- Specialized 26� x 2.4/2.75�, schraeder valve
Drivetrain and brakes
- Front Brake
- Hayes HFX-9 full hydraulic disc, 8� rotor
- Rear Brake
- Hayes HFX-9 full hydraulic disc, 8� rotor
- Front Brake Lever
- Hayes HFX-9 full hydraulic disc
- Rear Brake Lever
- Hayes HFX-9 full hydraulic disc
- Front Derailleur
- Shimano M-570 LX, 34.9, bottom pull
- Rear Derailleur
- Shimano M-750 XT, short cage, standard spring
- Front Shifter
- Shimano M-570 LX
- Rear Shifter
- Shimano M-570 LX
- Cog/Cassette/Freewheel
- Shimano HG-50 LX, 9-speed, 11x34t
- Chain
- Shimano HG-73
- Crankset
- Truvativ Holzfeller 7050, ISIS spline, 7050 alloy, 170mm
- Chainrings
- 24/36 4-bolt, compact 104/64mm pattern, Poly-G bash/rock guard
- Bottom Bracket
- Truvativ ISIS Gigapipe 4-bearing DH, 73mm shell, 128mm spindle
- Pedals
- Alloy platform, 3mm pressed pins, 9/16� Cr-Mo axle
Additional parts
- Stem
- Integrated Marzocchi 888 for 31.8mm bar
- Handlebar
- Specialized Demo rise bar, 6066 butted alloy,31.8mm clamp, 6 degree upsweep, 9 degree backsweep, 670mm
- Grips/Tape
- Specialized MTB grip, black, double density Kraton
- Saddle
- Specialized freeride, SL foam 8mm Cr-Mo rails, X-Brace
- Seatpost
- Syncros Derived 2-bolt, 30.9 x 330mm
- Seatpost Clamp
- Alloy collar with Q/R, 34.9mm clamp I.D., black
- Other
- Chain stay/seat stay protector, derailleur protector, Demo tool, reflectors, owners manual
