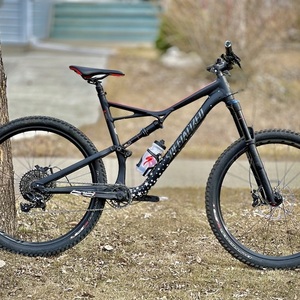

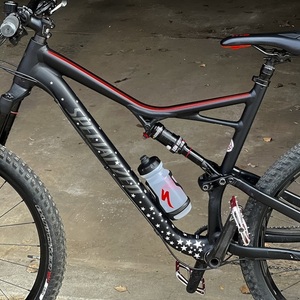

Added white stars, and red pin stripes to customize the black frame.
Technical Specifications
FRAME
M5 alloy, Trail Geometry, PF30 BB, internal cable routing, ManFu link, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
SEAT BINDER
Alloy, 34.9mm
REAR SHOCK
RockShox Monarch RT, Rx Trail Tune, AUTOSAG, rebound and 2-position compression adjust, 197x48mm
FORK
RockShox Revelation RL 27.5, Solo Air spring, lockout and rebound adjust, 15x110mm Maxle Lite thru-axle, 46mm offset, 150mm travel
RIMS
Roval Traverse 650b, hookless alloy, 29mm inner width, 24/28h, tubeless ready
FRONT HUB
Specialized disc, alloy, sealed cartridge bearings,15x110mm thru-axle, 24h
REAR HUB
Specialized disc, alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
SPOKES
DT Swiss Industry, stainless, 3x, 2.0"
FRONT TIRE
Butcher, GRID casing, 650x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready
REAR TIRE
Slaughter, GRID casing, 650x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready
INNER TUBES
650bx1.75/2.4mm, 40mm Presta valve
REAR DERAILLEUR
SRAM GX, long cage, 11-speed
SHIFT LEVERS
SRAM GX, 11-speed, trigger
CASSETTE
SRAM XG-1150, 11-speed, 10-42t
CHAIN
SRAM PC-1110, 11-speed w/PowerLink
CRANKSET
RaceFace Aeffect, 6000-series alloy, 24mm spindle, 52mm chainline, 30T
COCKPIT: STEM
Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise
HANDLEBARS
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm width
GRIPS
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel
BRAKES: FRONT BRAKE
SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200/180mm rotor
REAR BRAKE
SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 180/160mm rotor
