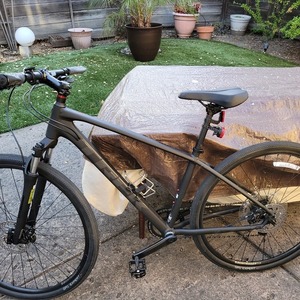

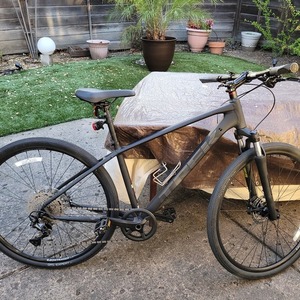

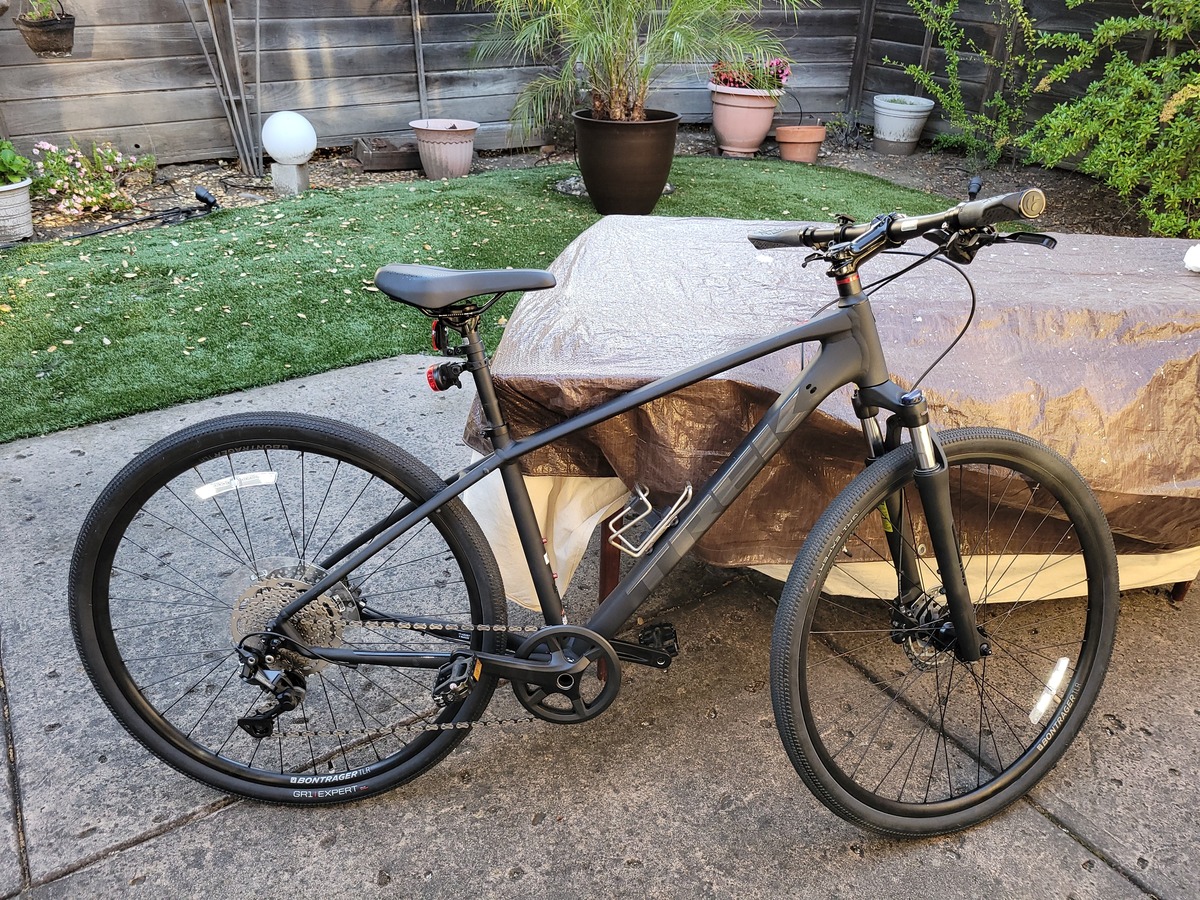

2022 Trek Dual Sport 3
- Serial
-
WTU143XC2504T - Manufacturer
- Trek
- Name
- PPM Trek 2022
- Model
- Dual Sport 3
- Year
- 2022
- Primary colors
- Black
- Frame size
- M
- Frame Material
- Aluminum
- Handlebar type
- Flat or riser
- Wheel diameter
- 700 C
- Tire width
- Wide tire
- Drivetrain front
- 1
- Drivetrain rear
- 10
- Distinguishing features
-
https://www.trekbikes.com/us/en_US/bikes/hybrid-bikes/dual-sport-bikes/dual-sport/dual-sport-3-gen-4/p/35104/?colorCode=black Weight: M - 13.01 kg / 28.69 lbs Frame: Alpha Gold Aluminum, DuoTrap S compatible, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Frame and fork
- Fork
- SR Suntour NEX, coil spring, preload, hydraulic lockout, 100x5mm QR, 63mm travel NEX (SR Suntour)
- Headset
- 1-1/8'' threadless, sealed cartridge bearings
Wheels
- Hub
- Front: Formula DC-20, alloy, 6-bolt, 5x100mm QR Rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR DC-20 and DC-22 (Formula)
- Rim
- Bontrager Tubeless Ready Disc, 32-hole, presta valve Tubeless Ready Disc (Bontrager)
- Tire
- Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40c GR1 Expert (Bontrager)
Drivetrain and brakes
- Pedals
- Wellgo M141, resin body, alloy cage M141 (Wellgo)
- Chain
- KMC X10, 10 speed X10 (KMC)
- Cog/Cassette/Freewheel
- Shimano Deore M4100, 11-46, 10 speed Deore M4100 (Shimano)
- Shifter
- Shimano Deore M4100, 10 speed Deore M4100 (Shimano)
- Derailleur
- Shimano Deore M5120, long cage Deore M5120 (Shimano)
- Crankset
- Prowheel alloy, 40T narrow-wide ring, 170mm length
- Brake Rotor
- Shimano RT26, 6-bolt,160mm RT26 (Shimano)
- Brake
- Shimano MT200 hydraulic disc MT200 (Shimano)
Additional parts
- Seatpost
- Bontrager alloy, 27.2mm, 12mm offset, 330mm length (Bontrager)
- Saddle
- Bontrager H1 H1 (Bontrager)
- Handlebar
- Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 600mm width Comp Lowriser (Bontrager)
- Grips/Tape
- Bontrager XR Endurance Elite, lock-on, ergonomic XR Endurance Elite (Bontrager)
- Stem
- Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length Elite (Bontrager)
