FRAME2020 META HT JR
Alloy 6061, triple butted tubes, T4, T6.
SHOCK-

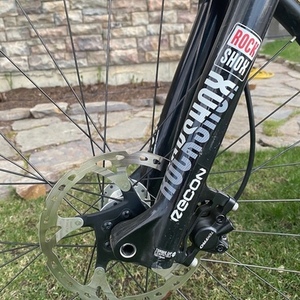

FORKROCKSHOX Recon RL, 150 mm travel
27.5", rebound, Boost (15 x 110 mm), 46 mm offset
HEADSETACROS Fiber cups ZS44 / ZS56
ZS44 / ZS56, sealed bearings, IPS Technology
STEMRIDE ALPHA Freeride, 40 mm
31,8 mm, 0° angle, 2014 alloy
BARRIDE ALPHA, 15 mm rise, 760 mm, 31,8 mm
6061 alloy, double butted
GRIPSRIDE ALPHA, DH Grips, black
Ultra soft compound, single clamp

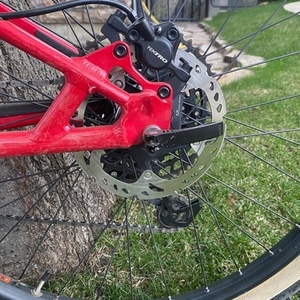

BRAKESTEKTRO HD-M276, Kids specific, 180 mm / 180 mm
Long levers to use up to 3 fingers
SHIFTERSSRAM SX Eagle, 12 sp
CHAIN GUIDE-

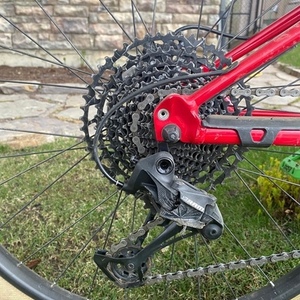

REAR MECHSRAM SX Eagle, 12 sp
BOTTOM BRACKETSRAM DUB BSA

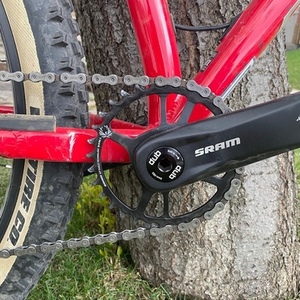

CRANKSETSRAM X1 1000 Eagle, 165 mm, 32t chainring
DUB
CHAINSRAM SX Eagle, 12 sp
114 links
CASSETTESRAM SX Eagle, 12 sp
11-50t
RIMSWTB ST i30
32 holes, 30 mm inner width, tubeless ready
HUBSFORMULA, loose ball front and rear
32 holes, 6 bolts, 15 x 110 mm front, 9 x 135 mm rear, standard freehub body, silver anodised
SPOKES / NIPPLESSAPIM Leader spokes
Stainless steel, 2.0 mm
TYRESVEE TIRE CO. FlowSnap 27.5 x 2.35, front / VEE TIRE CO. FlowSnap 27.5 x 2.35, rear
MPC Compound, skinwall, front / MPC Compound, skinwall, rear

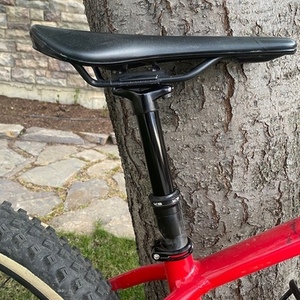

SEATPOSTKINDSHOCK Ragei
31.6 mm, Southpaw alloy lever, 100 mm
SADDLEFIZIK Taiga
Manganese rails
WEIGHT13,8 kg / 30.4 lbs
PEDALS INCLUDEDNo
COLOURBoxxer red
Shiny clear coat
ACCESSORIESChainstay protector, seatstay protector
