2014 Trek X-Caliber 6

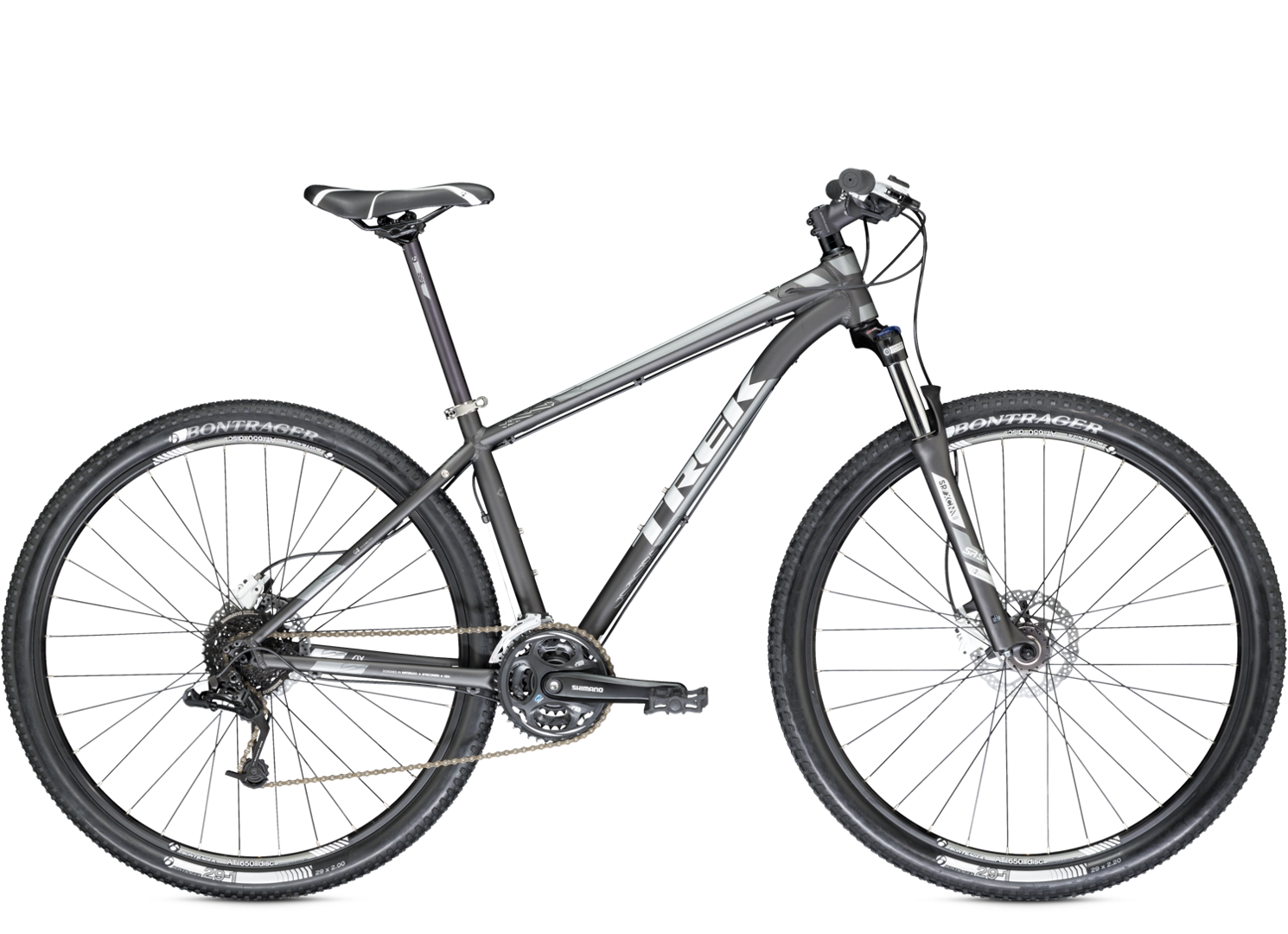

Stock photo of a 2014 X-Caliber 6 Color may not match!
- Serial
-
WTU142C2215J - Other serial/registration/sticker
- 2077U0314
- Manufacturer
- Trek
- Name
- XC6
- Model
- X-Caliber 6
- Year
- 2014
- Primary colors
- Black and White
- Frame size
- L
- Frame Material
- Aluminum
- Wheel diameter
- 700 C
- Tire width
- Wide tire
- Distinguishing features
-
Alpha Gold Aluminum w/semi-integrated head tube, mechanically formed & butted tubing, race geometry, internal front derailleur routing, G2 Geometry
Frame and fork
- Headset
- 1-1/8" threadless, semi-integrated, semi-cartridge bearings
- Fork
- SR Suntour XCM w/coil spring, preload, hydraulic lockout, custom G2 Geometry w/51mm offset, 100mm travel (14.5": 80mm travel)
Wheels
- Front Wheel
- Formula DC20 alloy front hub; Formula DC22 alloy rear hub w/Bontrager AT-650 32-hole double-walled rims
- Rear Wheel
- Formula DC20 alloy front hub; Formula DC22 alloy rear hub w/Bontrager AT-650 32-hole double-walled rims
- Front Tire
- Bontrager XR1, 29x2.20" front, 29x2.0" rear
- Rear Tire
- Bontrager XR1, 29x2.20" front, 29x2.0" rear
Drivetrain and brakes
- Crankset
- Shimano Altus M311, 42/32/22
- Cog/Cassette/Freewheel
- Shimano HG31 11-34, 8 speed
- Pedals
- Wellgo nylon platform
- Front Brake
- Shimano M395 hydraulic disc brakes
- Rear Brake
- Shimano M395 hydraulic disc brakes
- Front Shifter
- SRAM X4, 8 speed
- Rear Shifter
- SRAM X4, 8 speed
- Front Derailleur
- Shimano M191
- Rear Derailleur
- SRAM X4
Additional parts
- Saddle
- Bontrager Evoke 1
- Seatpost
- Bontrager SSR, 27.2mm, 12mm offset
- Handlebar
- Bontrager Low Riser, 31.8mm, 15mm rise
- Stem
- Bontrager Race Lite, 31.8mm, 7 degree
- Grips/Tape
- Bontrager Race
