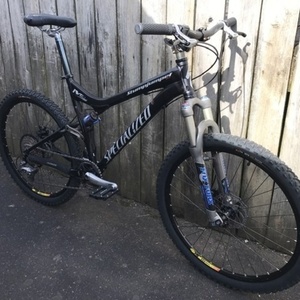

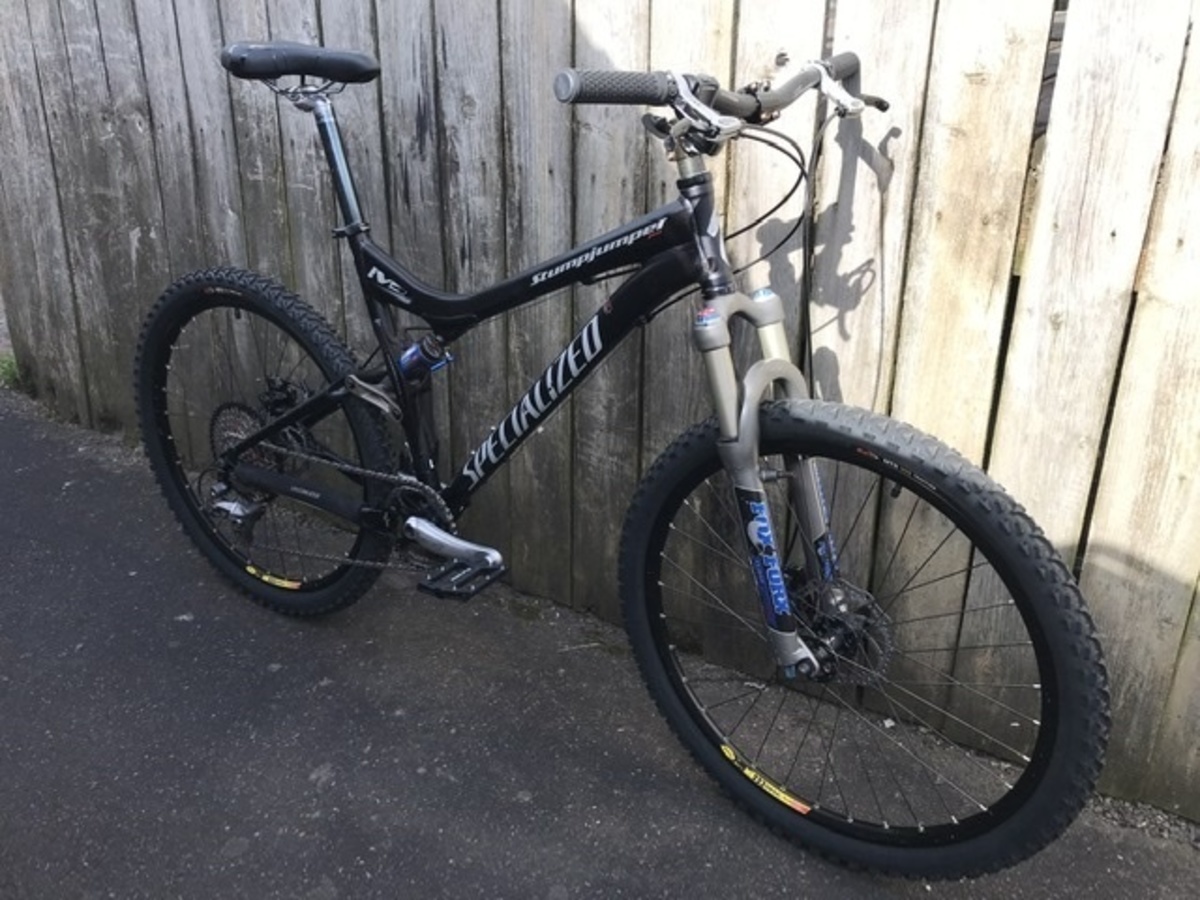

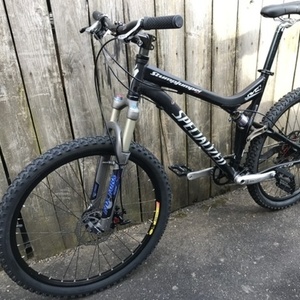

2004 Specialized Stumpjumper FSR Pro
- Serial
-
M3JL33230 - Manufacturer
- Specialized
- Model
- Stumpjumper FSR Pro
- Year
- 2004
- Primary colors
- Black
- Frame size
- L
- Frame Material
- Aluminum
- Distinguishing features
-
M4 Manipulated Alloy w/ ORE technology, fully butted w/ refined tapers & reduced wall thickness, disc & rim brake compatible, replaceable derailleur hanger
Frame and fork
- Fork
- Rock Shox SID Team, 80mm travel, Dual Air, external rebound adjust, compression lockout, alloy steerer
- Headset
- 1 1/8� threadless, 3x sealed, black alloy cups, cartridge bearings, ultralight alloy top cap and bolt
Wheels
- Front Rim
- Mavic XC717, 26�, black, welded seam, machined sidewalls, eyelets
- Rear Rim
- Mavic XC717, 26�, black, welded seam, machined sidewalls, eyelets
- Front Hub
- Specialized Stout, 28 hole, cartridge bearings, 9mm Skraxle
- Rear Hub
- Shimano M-752 XT, 32 hole, alloy Q/R
- Spokes
- DT Swiss Revolution 1.8/1.5/1.8mm butted, SS, black, alloy nipples L251/R251mm front, L262/R261mm rear
- Front Tire
- Specialized Roll-X Pro 2.0, aramid bead, 120tpi
- Rear Tire
- Specialized Roll-X Pro 2.0, aramid bead, 120tpi
- Front Tube
- Specialized Ultralight, presta valve
- Rear Tube
- Specialized Ultralight, presta valve
Drivetrain and brakes
- Front Brake
- Avid SD Ti, Rim Wrangler cartridge pads, lightweight compressionless housing
- Rear Brake
- Avid SD Ti, Rim Wrangler cartridge pads, lightweight compressionless housing
- Front Shift And Brake Lever
- Shimano M-760 XT integrated w/ shifter
- Rear Shift And Brake Lever
- Shimano M-760 XT integrated w/ shifter
- Front Derailleur
- Shimano M-760 XT, 34.9mm clamp, bottom pull
- Rear Derailleur
- Shimano M-952 XTR, long cage, standard spring
- Front Shifter
- Shimano M-760 XT, STI integrated shifter/lever combo
- Rear Shifter
- Shimano M-760 XT, STI integrated shifter/lever combo
- Cog/Cassette/Freewheel
- Shimano M-760 XT, 9-speed, 11x34t
- Chain
- Shimano HG-73
- Crankset
- Shimano M-760 XT Hollow Tech II, 2-piece crank/BB
- Chainrings
- Shimano 44Ax32Ax22A, 4mm thick outer, 4 bolt 104/64mm, alloy chainring bolts
- Bottom Bracket
- Shimano M-760 XT, Integrated with crank
- Pedals
- Shimano 520 SPD
Additional parts
- Stem
- 3-D forged CNC machined, 4 bolt, 6 degree rise, black
- Handlebar
- Specialized XC flat bar, 2014 butted alloy, 5 degree backsweep, 580mm width
- Grips/Tape
- Specialized MTB grip, black, double density Kraton
- Saddle
- Specialized Body Geometry technology, microfiber cover, dual density base, titanium rails
- Seatpost
- 2014 butted alloy, black, 30.9 x 350/400mm
- Seatpost Clamp
- Alloy collar w/ bolt, 34.9mm clamp I.D., black
- Other
- Chain stay/seat stay protector, derailleur protector, reflectors, owners manual
