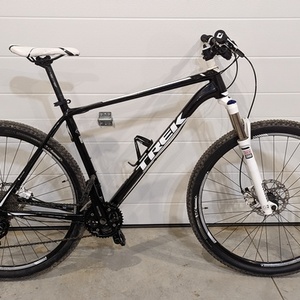

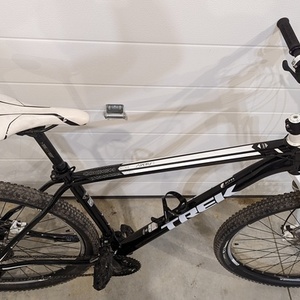

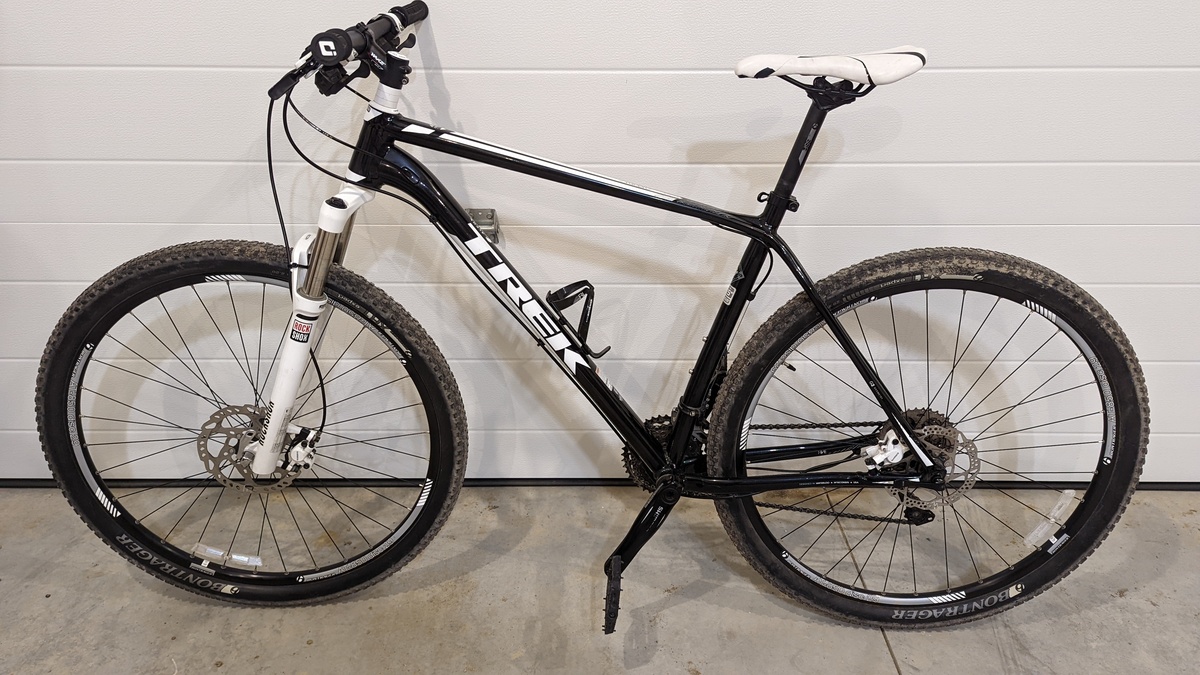

2014 Trek Superfly 5 - New!
- Serial
-
WTU162G5414H - Manufacturer
- Trek
- Model
- Superfly 5 - New!
- Year
- 2014
- Primary colors
- Black and White
- Frame size
- XL
- Frame Material
- Aluminum
- Wheel diameter
- 700 C
- Tire width
- Wide tire
- Distinguishing features
-
Alpha Platinum Aluminum, butted & hydroformed tubing, E2 tapered head tube, internal cable routing, press fit BB, balanced post mount, Closed Convert dropouts, G2 Geometry
Frame and fork
- Fork
- RockShox Recon Silver w/Solo Air spring, rebound, TurnKey lockout, custom G2 Geometry w/51mm offset, 100mm travel
- Headset
- FSA IS-2, E2, sealed cartridge bearing
Wheels
- Front Wheel
- Shimano M435 center lock hubs w/Bontrager AT-850 32-hole double-walled rim
- Rear Wheel
- Shimano M435 center lock hubs w/Bontrager AT-850 32-hole double-walled rim
- Front Tire
- Bontrager XR1 Expert, aramid bead, 29x2.20"
- Rear Tire
- Bontrager XR1 Expert, aramid bead, 29x2.20"
Drivetrain and brakes
- Front Shifter
- Shimano Deore, 10 speed
- Rear Shifter
- Shimano Deore, 10 speed
- Front Derailleur
- Shimano Deore
- Rear Derailleur
- Shimano Deore XT Shadow
- Crankset
- Shimano M622, 40/30/22
- Cog/Cassette/Freewheel
- Shimano HG62 11-36, 10 speed
- Front Brake
- Shimano M445 hydraulic disc
- Rear Brake
- Shimano M445 hydraulic disc
Additional parts
- Saddle
- Bontrager Evoke 1.5
- Seatpost
- Bontrager SSR, 27.2mm, 12mm offset
- Handlebar
- Bontrager Low Riser, 31.8mm, 5mm rise
- Stem
- Bontrager Race Lite, 31.8mm, 7 degree
- Grips/Tape
- Bontrager Race
