2019 Volt Bike Yukon 750

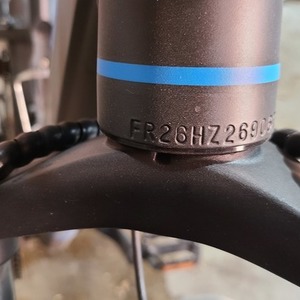

- Serial
-
FR26HZ2690625 - Manufacturer
- Volt Bike (VoltBike)
- Name
- Yukon 750 Limited
- Model
- Yukon 750
- Year
- 2019
- Primary colors
- Black and Blue
- Frame size
- L
- Frame Material
- Aluminum
- Handlebar type
- Flat or riser
- Wheel diameter
- 26in
- Tire width
- Wide tire
- Drivetrain front
- 1
- Drivetrain rear
- 7
- Distinguishing features
-

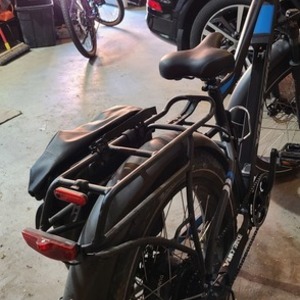

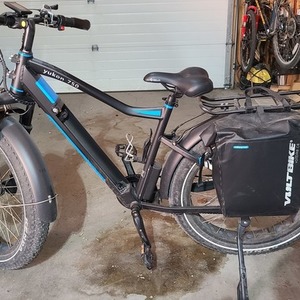

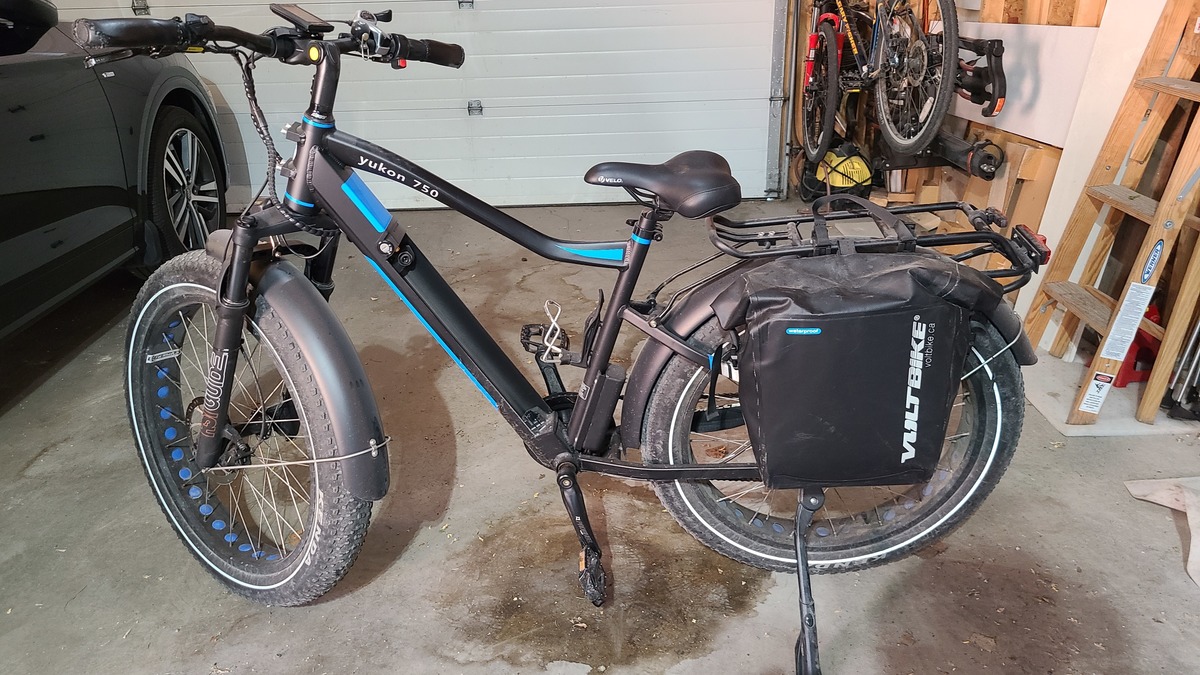

This is an Electric Fat bike with saddlebags and fenders. It has a cargo rack on the back. The color is back with blue accents.
Frame and fork
- Fork

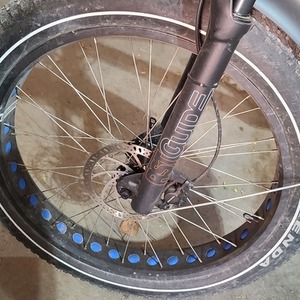

- RST Guide aluminum alloy suspension with lockout function. 90mm travel. 135mm dropout. 32mm stanchions Guide
Wheels
- Hub
- Alloy 6061 Electric Motor
- Rim
- 26" Rim, 36 Spokes
- Spokes
- Front 255mm 12G, Rear 220mm 13G
- Tire
- Kenda Juggernaut 26x4 KS Shield, Wire Bead, 30 TPI casing, puncture resistant layer Juggernaut
Drivetrain and brakes
- Brake

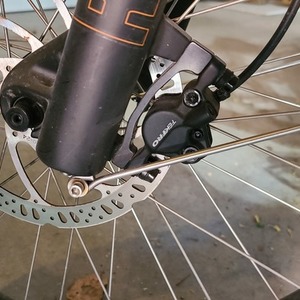

- Hydraulic disc brakes front/rear Tektro Auriga HD-E500 Auriga HD-E500
- Bottom Bracket
- Neco 910, 23.5mm + 120mm + 23.5mm Neco 910
- Chain
- KMC Rust Buster. 12.7mm pin to pin center. 124 links. Total length 1547.8mm
- Crankset
- Aluminum Alloy-6061 44T Crank, 170mm with Outer Guard
- Derailleur
- Rear Metal Derailler Guard
- Ebike Motor
- 500W (750W Peak) Hub Motor
- Ebike Battery
- 17.5Ah 48V Li-ion
- Cog/Cassette/Freewheel
- Sunrace M2 Freewheel Super-Low 7 Speed 13-34T M2
- Pedals
- Wellgo LU-313 w/ reflectors
- Derailleur

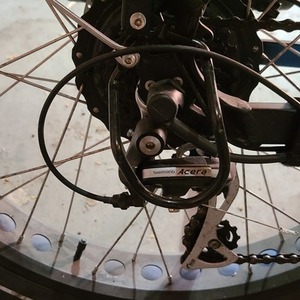

- Rear: Shimano Acera RD-410 7 speed direct rear derailler Acera RD-410
- Shifter
- Shimano Tourney TX50R6CT Thumb Shifter Plus 7-Speed TX50R6CT
Additional parts
- Lights
- Spanninga Kendo+ LED 30 Lux. Powered by the main battery and controlled from the keypad

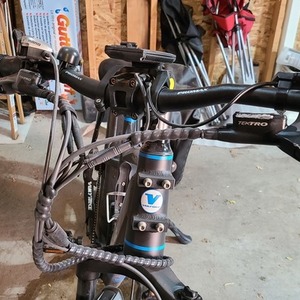

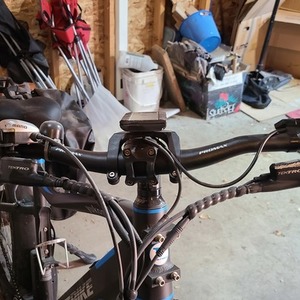

- Handlebar
- PROMAX Aluminum Alloy 31.8mm*22.2mm*680mm, 9 degree
- Lights

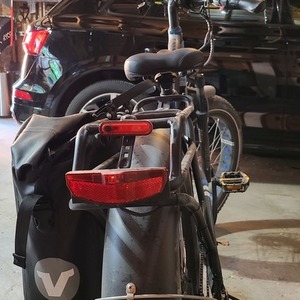

- LED brake light. Powered by the main battery
- Seatpost
- Promax SP-252 Aluminum 6061 Alloy, 30.4mm*350mm SP-252
- Seatpost
- SEAT: Velo Plush VL-6142 VL-6142
- Stem
- Promax MA-596 w/ adjustable angle 35° - 145°. 105mm extension, bar bore 31.8mm MA-596
- Rack
- Aluminum rear rack which fits our VoltBike Yukon 750 2018 and 2019 edition
- Basket

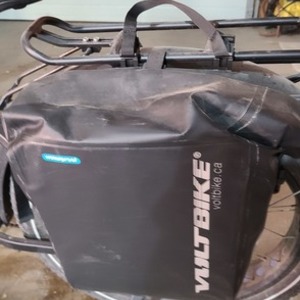

- 20 L Pannier Bag Waterproof This pannier bag is designed by our team and fits all of the VoltBike lineups. Quick-release top hooks mean the bag can be lifted off or mounted with ease on your bike rack. Totally waterproof to shield your clothes and lunch from sideways rain. The rolltop design is sleek and easy to close. Reflective hits get you noticed after dusk. This commuting pannier bag converts quickly to a shoulder bag or satchel. Sold as a single bag. Dimensions: 27cm wide fat base, 30cm wide at top, 17cm deep and 40-50cm tall
