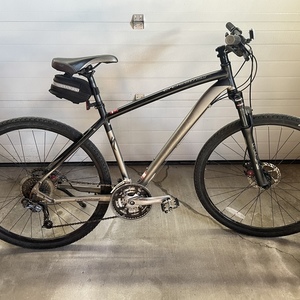

2010 Specialized Crosstrail Comp
- Serial
-
WUD096029765E - Manufacturer
- Specialized
- Name
- Specialized Crosstrail Comp
- Model
- Crosstrail Comp
- Year
- 2010
- Primary colors
- Black and Silver, gray or bare metal
- Frame size
- L
- Frame Material
- Aluminum
- Wheel diameter
- 700 C
- Tire width
- Wide tire
- Distinguishing features
-
Crosstrail A1 Premium Aluminum, formed TT, ORE DT, forged dropouts w/ replaceable hanger, integrated kickstand mount, chainstay disc mount
Frame and fork
- Fork
- SR SunTour SF10-NRX-D-LO-700, magensium lower, Cr-Mo stanchions, hydraulic lock out
- Headset
- 1-1/8" threadless, sealed loose ball bearings
Wheels
- Front Rim
- Alex Crosstrail, 700c, alloy double wall w/ eyelets, 32h
- Rear Rim
- Alex Crosstrail, 700c, alloy double wall w/ eyelets, 32h
- Front Hub
- Forged alloy, Hi Lo flange, machined disc mount, QR
- Rear Hub
- Shimano FH-M475, forged alloy, disc 6-bolt, QR
- Spokes
- 1.8mm (15g) stainless
- Front Tire
- Specialized Borough XC Sport 700x45c, 60TPI, wire bead
- Rear Tire
- Specialized Borough XC Sport 700x45c, 60TPI, wire bead
- Front Tube
- Schraeder valve
- Rear Tube
- Schraeder valve
Drivetrain and brakes
- Front Brake
- Avid BB5, mechanical disc w/ G2 Clean Sweep rotor
- Rear Brake
- Avid BB5, mechanical disc w/ G2 Clean Sweep rotor
- Front Brake Lever
- Avid FR-5, alloy, two-finger linear pull
- Rear Brake Lever
- Avid FR-5, alloy, two-finger linear pull
- Front Derailleur
- Shimano FD-M590, 31.8mm clamp, top swing, dual pull
- Rear Derailleur
- Shimano SLX, 9-speed
- Front Shifter
- Shimano Deore 9-speed, rapid fire
- Rear Shifter
- Shimano Deore 9-speed, rapid fire
- Cog/Cassette/Freewheel
- Shimano CS-HG50, 9-speed, 11-32t
- Chain
- KMC X-9, 9-speed w/ reusable Missing Link
- Crankset
- Shimano FC-M443, 9-Speed, w/ chainguard
- Chainrings
- 48 x 36 x 26T w/ chainguard
- Bottom Bracket
- Cartridge bearing, square spindle with crank stop right side and capless bolts
- Pedals
- Alloy body, sealed bearings
Additional parts
- Stem
- 3D forged alloy, 4-bolt, 31.8mm, 7 degree rise
- Handlebar
- Alloy riser bar, 31.8mm, 25mm rise, 620mm wide, 8 degree back sweep, 8 degree up
- Grips/Tape
- Specialized Enduro, closed end, 130mm
- Saddle
- Specialized Body Geometry Indie XC, front and rear bumpers, 143mm width
- Seatpost
- Alloy, 2-bolt forged head, 12.5mm offset, 27.2mm
- Seatpost Clamp
- Forged alloy
- Other
- Chain stay protector, derailleur hanger, clear coat, owners manual
